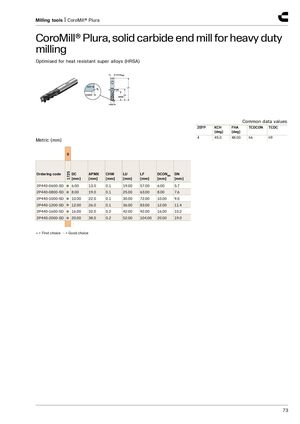

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for heavy duty milling​​ Optimised for heat resistant super alloys (HRSA) Common data values ZEFP KCH FHA TCDCON TCDC [deg] [deg] 4 45.0 48.00 h6 h9 Metric (mm) S 1725 Ordering code DC APMX CHW LU LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2P440-0600-SD ● 6.00 13.0 0.1 19.00 57.00 6.00 5.7 2P440-0800-SD ● 8.00 19.0 0.1 25.00 63.00 8.00 7.6 2P440-1000-SD ● 10.00 22.0 0.1 30.00 72.00 10.00 9.5 2P440-1200-SD ● 12.00 26.0 0.1 36.00 83.00 12.00 11.4 2P440-1600-SD ● 16.00 32.0 0.2 42.00 92.00 16.00 15.2 2P440-2000-SD ● 20.00 38.0 0.2 52.00 104.00 20.00 19.0 ● = First choice ○ = Good choice 73
