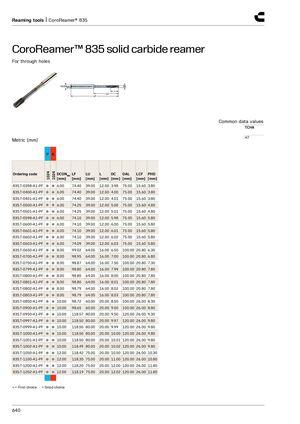

Reaming tools | CoroReamer® 835 CoroReamer™ 835 solid carbide reamer​​ For through holes Common data values TCHA H7 Metric (mm) P K 1024 1024 Ordering code DCONMS LF LU L DC OAL LCF PHD [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 835.T-0398-A1-PF ● ● 6.00 74.40 39.00 12.00 3.98 75.00 15.60 3.80 835.T-0400-A1-PF ● ● 6.00 74.40 39.00 12.00 4.00 75.00 15.60 3.80 835.T-0401-A1-PF ● ● 6.00 74.40 39.00 12.00 4.01 75.00 15.60 3.80 835.T-0500-A1-PF ● ● 6.00 74.25 39.00 12.00 5.00 75.00 15.60 4.80 835.T-0501-A1-PF ● ● 6.00 74.25 39.00 12.00 5.01 75.00 15.60 4.80 835.T-0598-A1-PF ● ● 6.00 74.10 39.00 12.00 5.98 75.00 15.60 5.80 835.T-0600-A1-PF ● ● 6.00 74.10 39.00 12.00 6.00 75.00 15.60 5.80 835.T-0601-A1-PF ● ● 6.00 74.10 39.00 12.00 6.01 75.00 15.60 5.80 835.T-0602-A1-PF ● ● 6.00 74.10 39.00 12.00 6.02 75.00 15.60 5.80 835.T-0603-A1-PF ● ● 6.00 74.09 39.00 12.00 6.03 75.00 15.60 5.80 835.T-0650-A1-PF ● ● 8.00 99.02 64.00 16.00 6.50 100.00 20.80 6.30 835.T-0700-A1-PF ● ● 8.00 98.95 64.00 16.00 7.00 100.00 20.80 6.80 835.T-0750-A1-PF ● ● 8.00 98.87 64.00 16.00 7.50 100.00 20.80 7.30 835.T-0799-A1-PF ● ● 8.00 98.80 64.00 16.00 7.99 100.00 20.80 7.80 835.T-0800-A1-PF ● ● 8.00 98.80 64.00 16.00 8.00 100.00 20.80 7.80 835.T-0801-A1-PF ● ● 8.00 98.80 64.00 16.00 8.01 100.00 20.80 7.80 835.T-0802-A1-PF ● ● 8.00 98.79 64.00 16.00 8.02 100.00 20.80 7.80 835.T-0803-A1-PF ● ● 8.00 98.79 64.00 16.00 8.03 100.00 20.80 7.80 835.T-0850-A1-PF ● ● 10.00 98.72 60.00 20.00 8.50 100.00 26.00 8.30 835.T-0900-A1-PF ● ● 10.00 98.65 60.00 20.00 9.00 100.00 26.00 8.80 835.T-0950-A1-PF ● ● 10.00 118.57 80.00 20.00 9.50 120.00 26.00 9.30 835.T-0997-A1-PF ● ● 10.00 118.50 80.00 20.00 9.97 120.00 26.00 9.80 835.T-0999-A1-PF ● ● 10.00 118.50 80.00 20.00 9.99 120.00 26.00 9.80 835.T-1000-A1-PF ● ● 10.00 118.50 80.00 20.00 10.00 120.00 26.00 9.80 835.T-1001-A1-PF ● ● 10.00 118.50 80.00 20.00 10.01 120.00 26.00 9.80 835.T-1002-A1-PF ● ● 10.00 118.49 80.00 20.00 10.02 120.00 26.00 9.80 835.T-1050-A1-PF ● ● 12.00 118.42 75.00 20.00 10.50 120.00 26.00 10.30 835.T-1100-A1-PF ● ● 12.00 118.35 75.00 20.00 11.00 120.00 26.00 10.80 835.T-1200-A1-PF ● ● 12.00 118.20 75.00 20.00 12.00 120.00 26.00 11.80 835.T-1202-A1-PF ● ● 12.00 118.19 75.00 20.00 12.02 120.00 26.00 11.80 ● = First choice ○ = Good choice 640
