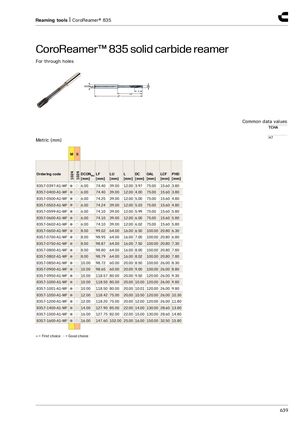

Reaming tools | CoroReamer® 835 CoroReamer™ 835 solid carbide reamer​​ For through holes Common data values TCHA H7 Metric (mm) M S 1024 1024 Ordering code DCONMS LF LU L DC OAL LCF PHD [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 835.T-0397-A1-MF ● ○ 6.00 74.40 39.00 12.00 3.97 75.00 15.60 3.80 835.T-0400-A1-MF ● ○ 6.00 74.40 39.00 12.00 4.00 75.00 15.60 3.80 835.T-0500-A1-MF ● ○ 6.00 74.25 39.00 12.00 5.00 75.00 15.60 4.80 835.T-0503-A1-MF ● ○ 6.00 74.24 39.00 12.00 5.03 75.00 15.60 4.80 835.T-0599-A1-MF ● ○ 6.00 74.10 39.00 12.00 5.99 75.00 15.60 5.80 835.T-0600-A1-MF ● ○ 6.00 74.10 39.00 12.00 6.00 75.00 15.60 5.80 835.T-0602-A1-MF ● ○ 6.00 74.10 39.00 12.00 6.02 75.00 15.60 5.80 835.T-0650-A1-MF ● ○ 8.00 99.02 64.00 16.00 6.50 100.00 20.80 6.30 835.T-0700-A1-MF ● ○ 8.00 98.95 64.00 16.00 7.00 100.00 20.80 6.80 835.T-0750-A1-MF ● ○ 8.00 98.87 64.00 16.00 7.50 100.00 20.80 7.30 835.T-0800-A1-MF ● ○ 8.00 98.80 64.00 16.00 8.00 100.00 20.80 7.80 835.T-0802-A1-MF ● ○ 8.00 98.79 64.00 16.00 8.02 100.00 20.80 7.80 835.T-0850-A1-MF ● ○ 10.00 98.72 60.00 20.00 8.50 100.00 26.00 8.30 835.T-0900-A1-MF ● ○ 10.00 98.65 60.00 20.00 9.00 100.00 26.00 8.80 835.T-0950-A1-MF ● ○ 10.00 118.57 80.00 20.00 9.50 120.00 26.00 9.30 835.T-1000-A1-MF ● ○ 10.00 118.50 80.00 20.00 10.00 120.00 26.00 9.80 835.T-1001-A1-MF ● ○ 10.00 118.50 80.00 20.00 10.01 120.00 26.00 9.80 835.T-1050-A1-MF ● ○ 12.00 118.42 75.00 20.00 10.50 120.00 26.00 10.30 835.T-1200-A1-MF ● ○ 12.00 118.20 75.00 20.00 12.00 120.00 26.00 11.80 835.T-1400-A1-MF ● ○ 14.00 127.90 85.00 22.00 14.00 130.00 28.60 13.80 835.T-1500-A1-MF ● ○ 16.00 127.75 82.00 22.00 15.00 130.00 28.60 14.80 835.T-1600-A1-MF ● ○ 16.00 147.60 102.00 25.00 16.00 150.00 32.50 15.80 ● = First choice ○ = Good choice 639
