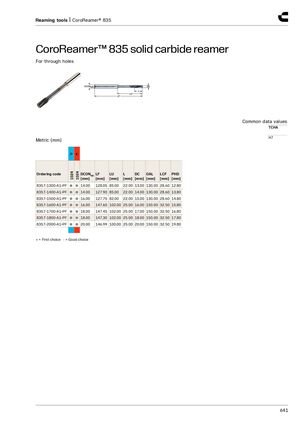

Reaming tools | CoroReamer® 835 CoroReamer™ 835 solid carbide reamer​​ For through holes Common data values TCHA H7 Metric (mm) P K 1024 1024 Ordering code DCONMS LF LU L DC OAL LCF PHD [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 835.T-1300-A1-PF ● ● 14.00 128.05 85.00 22.00 13.00 130.00 28.60 12.80 835.T-1400-A1-PF ● ● 14.00 127.90 85.00 22.00 14.00 130.00 28.60 13.80 835.T-1500-A1-PF ● ● 16.00 127.75 82.00 22.00 15.00 130.00 28.60 14.80 835.T-1600-A1-PF ● ● 16.00 147.60 102.00 25.00 16.00 150.00 32.50 15.80 835.T-1700-A1-PF ● ● 18.00 147.45 102.00 25.00 17.00 150.00 32.50 16.80 835.T-1800-A1-PF ● ● 18.00 147.30 102.00 25.00 18.00 150.00 32.50 17.80 835.T-2000-A1-PF ● ● 20.00 146.99 100.00 25.00 20.00 150.00 32.50 19.80 ● = First choice ○ = Good choice 641
