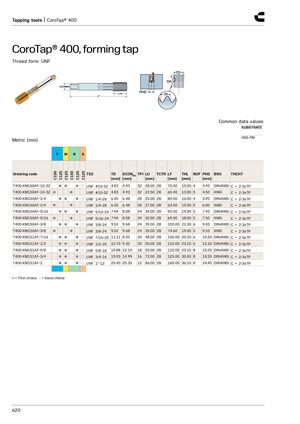

Tapping tools | CoroTap® 400 CoroTap® 400, forming tap​​ Thread form: UNF Common data values SUBSTRATE HSS-PM Metric (mm) P M N S C150 C125 C125 C150 C125 C125 Ordering code TDZ TD DCONMS TPI LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] T400-XM150AF-10-32 ●● ● ○ UNF #10-32 4.83 4.93 32 28.00 2B 70.00 15.00 4 4.45 DIN/ANSI C = 2-3xTP T400-XM150AF-10-32 ● ● UNF #10-32 4.83 4.93 32 22.50 2B 60.40 13.00 5 4.50 ANSI C = 2-3xTP T400-XM150AF-1/4 ●● ● ○ UNF 1/4-28 6.35 6.48 28 25.00 2B 80.00 16.00 4 5.95 DIN/ANSI C = 2-3xTP T400-XM150AF-1/4 ● ● UNF 1/4-28 6.35 6.48 28 27.00 2B 63.50 15.50 5 6.00 ANSI C = 2-3xTP T400-XM150AF-5/16 ●● ● ○ UNF 5/16-24 7.94 8.08 24 34.00 2B 90.00 19.00 5 7.45 DIN/ANSI C = 2-3xTP T400-XM150AF-5/16 ● ● UNF 5/16-24 7.94 8.08 24 32.00 2B 69.00 18.00 5 7.50 ANSI C = 2-3xTP T400-XM150AF-3/8 ●● ● ○ UNF 3/8-24 9.52 9.68 24 39.00 2B 100.00 21.30 6 9.05 DIN/ANSI C = 2-3xTP T400-XM150AF-3/8 ● ● UNF 3/8-24 9.52 9.68 24 35.50 2B 74.60 19.00 5 9.10 ANSI C = 2-3xTP T400-XM151AF-7/16 ●● ● ○ UNF 7/16-20 11.11 8.20 20 48.00 2B 100.00 20.10 6 10.55 DIN/ANSI C = 2-3xTP T400-XM151AF-1/2 ●● ● ○ UNF 1/2-20 12.70 9.32 20 55.00 2B 110.00 23.10 6 12.10 DIN/ANSI C = 2-3xTP T400-XM151AF-5/8 ●● ● ○ UNF 5/8-18 15.88 12.19 18 55.00 2B 110.00 23.10 8 15.25 DIN/ANSI C = 2-3xTP T400-XM151AF-3/4 ●● ● ○ UNF 3/4-16 19.05 14.99 16 72.00 2B 125.00 30.00 8 18.35 DIN/ANSI C = 2-3xTP T400-XM151AF-1 ●● ● ○ UNF 1”-12 25.40 20.32 12 86.00 2B 160.00 36.10 8 24.45 DIN/ANSI C = 2-3xTP ● = First choice ○ = Good choice 620
