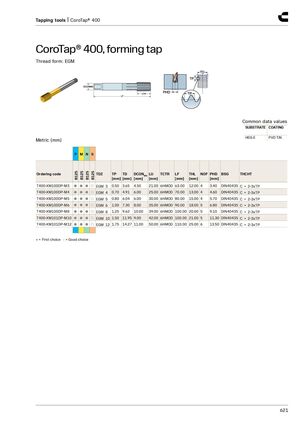

Tapping tools | CoroTap® 400 CoroTap® 400, forming tap​​ Thread form: EGM Common data values SUBSTRATE COATING HSS-E PVD TiN Metric (mm) P M N S B125 B125 B125 B125 Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] [mm] T400-XM100DP-M3 ● ● ● ○ EGM 3 0.50 3.65 4.50 21.00 6HMOD 63.00 12.00 4 3.40 DIN40435 C = 2-3xTP T400-XM100DP-M4 ● ● ● ○ EGM 4 0.70 4.91 6.00 25.00 6HMOD 70.00 13.00 4 4.60 DIN40435 C = 2-3xTP T400-XM100DP-M5 ● ● ● ○ EGM 5 0.80 6.04 6.00 30.00 6HMOD 80.00 15.00 4 5.70 DIN40435 C = 2-3xTP T400-XM100DP-M6 ● ● ● ○ EGM 6 1.00 7.30 8.00 35.00 6HMOD 90.00 18.00 5 6.80 DIN40435 C = 2-3xTP T400-XM100DP-M8 ● ● ● ○ EGM 8 1.25 9.62 10.00 39.00 6HMOD 100.00 20.00 5 9.10 DIN40435 C = 2-3xTP T400-XM101DP-M10 ● ● ● ○ EGM 10 1.50 11.95 9.00 42.00 6HMOD 100.00 21.00 5 11.30 DIN40435 C = 2-3xTP T400-XM101DP-M12 ● ● ● ○ EGM 12 1.75 14.27 11.00 50.00 6HMOD 110.00 25.00 6 13.50 DIN40435 C = 2-3xTP ● = First choice ○ = Good choice 621
