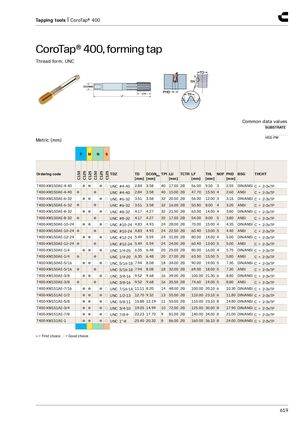

Tapping tools | CoroTap® 400 CoroTap® 400, forming tap​​ Thread form: UNC Common data values SUBSTRATE HSS-PM Metric (mm) P M N S C150 C125 C125 C150 C125 C125 Ordering code TDZ TD DCONMS TPI LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] T400-XM150AE-4-40 ●● ● ○ UNC #4-40 2.84 3.58 40 17.50 2B 56.00 9.50 3 2.55 DIN/ANSI C = 2-3xTP T400-XM150AE-4-40 ● ● UNC #4-40 2.84 3.58 40 15.00 2B 47.70 15.50 4 2.60 ANSI C = 2-3xTP T400-XM150AE-6-32 ●● ● ○ UNC #6-32 3.51 3.58 32 20.50 2B 56.00 12.00 3 3.15 DIN/ANSI C = 2-3xTP T400-XM150AE-6-32 ● ● UNC #6-32 3.51 3.58 32 16.00 2B 50.80 8.00 4 3.20 ANSI C = 2-3xTP T400-XM150AE-8-32 ●● ● ○ UNC #8-32 4.17 4.27 32 21.50 2B 63.00 14.00 4 3.80 DIN/ANSI C = 2-3xTP T400-XM150AE-8-32 ● ● UNC #8-32 4.17 4.27 32 17.50 2B 54.00 8.00 5 3.80 ANSI C = 2-3xTP T400-XM150AE-10-24 ●● ●○ UNC #10-24 4.83 4.93 24 28.00 2B 70.00 15.00 4 4.35 DIN/ANSI C = 2-3xTP T400-XM150AE-10-24 ● ● UNC #10-24 4.83 4.93 24 22.50 2B 60.40 13.00 5 4.40 ANSI C = 2-3xTP T400-XM150AE-12-24 ●● ● ○ UNC #12-24 5.49 5.59 24 31.00 2B 80.00 14.00 4 5.00 DIN/ANSI C = 2-3xTP T400-XM150AE-12-24 ● ● UNC #12-24 5.49 5.59 24 24.00 2B 60.40 13.00 5 5.00 ANSI C = 2-3xTP T400-XM150AE-1/4 ●● ● ○ UNC 1/4-20 6.35 6.48 20 25.00 2B 80.00 16.00 4 5.75 DIN/ANSI C = 2-3xTP T400-XM150AE-1/4 ● ● UNC 1/4-20 6.35 6.48 20 27.00 2B 63.50 15.50 5 5.80 ANSI C = 2-3xTP T400-XM150AE-5/16 ●● ● ○ UNC 5/16-18 7.94 8.08 18 34.00 2B 90.00 19.00 5 7.30 DIN/ANSI C = 2-3xTP T400-XM150AE-5/16 ● ● UNC 5/16-18 7.94 8.08 18 32.00 2B 69.00 18.00 5 7.30 ANSI C = 2-3xTP T400-XM150AE-3/8 ●● ● ○ UNC 3/8-16 9.52 9.68 16 39.00 2B 100.00 21.30 6 8.80 DIN/ANSI C = 2-3xTP T400-XM150AE-3/8 ● ● UNC 3/8-16 9.52 9.68 16 35.50 2B 74.60 19.00 5 8.80 ANSI C = 2-3xTP T400-XM151AE-7/16 ●● ●○ UNC 7/16-14 11.11 8.20 14 48.00 2B 100.00 20.10 6 10.30 DIN/ANSI C = 2-3xTP T400-XM151AE-1/2 ●● ● ○ UNC 1/2-13 12.70 9.32 13 55.00 2B 110.00 23.10 6 11.80 DIN/ANSI C = 2-3xTP T400-XM151AE-5/8 ●● ● ○ UNC 5/8-11 15.88 12.19 11 55.00 2B 110.00 23.10 8 14.80 DIN/ANSI C = 2-3xTP T400-XM151AE-3/4 ●● ● ○ UNC 3/4-10 19.05 14.99 10 72.00 2B 125.00 30.00 8 17.90 DIN/ANSI C = 2-3xTP T400-XM151AE-7/8 ●● ● ○ UNC 7/8-9 22.23 17.70 9 81.00 2B 140.00 34.00 8 21.00 DIN/ANSI C = 2-3xTP T400-XM151AE-1 ●● ● ○ UNC 1”-8 25.40 20.32 8 86.00 2B 160.00 36.10 8 24.00 DIN/ANSI C = 2-3xTP ● = First choice ○ = Good choice 619
