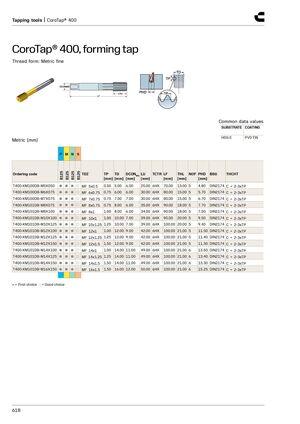

Tapping tools | CoroTap® 400 CoroTap® 400, forming tap​​ Thread form: Metric fine Common data values SUBSTRATE COATING HSS-E PVD TiN Metric (mm) P M N S B125 B125 B125 B125 Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] [mm] T400-XM100DB-M5X050 ● ● ● ○ MF 5x0.5 0.50 5.00 6.00 25.00 6HX 70.00 13.00 5 4.80 DIN2174 C = 2-3xTP T400-XM100DB-M6X075 ● ● ● ○ MF 6x0.75 0.75 6.00 6.00 30.00 6HX 80.00 15.00 5 5.70 DIN2174 C = 2-3xTP T400-XM100DB-M7X075 ● ● ● ○ MF 7x0.75 0.75 7.00 7.00 30.00 6HX 80.00 15.00 5 6.70 DIN2174 C = 2-3xTP T400-XM101DB-M8X075 ● ● ● ○ MF 8x0.75 0.75 8.00 6.00 35.00 6HX 90.00 18.00 5 7.70 DIN2174 C = 2-3xTP T400-XM101DB-M8X100 ● ● ● ○ MF 8x1 1.00 8.00 6.00 34.00 6HX 90.00 18.00 5 7.50 DIN2174 C = 2-3xTP T400-XM101DB-M10X100 ● ● ● ○ MF 10x1 1.00 10.00 7.00 39.00 6HX 90.00 20.00 5 9.50 DIN2174 C = 2-3xTP T400-XM101DB-M10X125 ● ● ● ○ MF 10x1.25 1.25 10.00 7.00 39.00 6HX 100.00 20.00 5 9.40 DIN2174 C = 2-3xTP T400-XM101DB-M12X100 ● ● ● ○ MF 12x1 1.00 12.00 9.00 42.00 6HX 100.00 21.00 5 11.50 DIN2174 C = 2-3xTP T400-XM101DB-M12X125 ● ● ● ○ MF 12x1.25 1.25 12.00 9.00 42.00 6HX 100.00 21.00 5 11.40 DIN2174 C = 2-3xTP T400-XM101DB-M12X150 ● ● ● ○ MF 12x1.5 1.50 12.00 9.00 42.00 6HX 100.00 21.00 5 11.30 DIN2174 C = 2-3xTP T400-XM101DB-M14X100 ● ● ● ○ MF 14x1 1.00 14.00 11.00 49.00 6HX 100.00 21.00 6 13.50 DIN2174 C = 2-3xTP T400-XM101DB-M14X125 ● ● ● ○ MF 14x1.25 1.25 14.00 11.00 49.00 6HX 100.00 21.00 6 13.40 DIN2174 C = 2-3xTP T400-XM101DB-M14X150 ● ● ● ○ MF 14x1.5 1.50 14.00 11.00 49.00 6HX 100.00 21.00 6 13.30 DIN2174 C = 2-3xTP T400-XM101DB-M16X150 ● ● ● ○ MF 16x1.5 1.50 16.00 12.00 50.00 6HX 100.00 21.00 6 15.25 DIN2174 C = 2-3xTP ● = First choice ○ = Good choice 618
