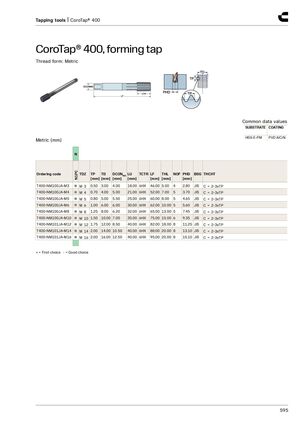

Tapping tools | CoroTap® 400 CoroTap® 400, forming tap​​ Thread form: Metric Common data values SUBSTRATE COATING HSS-E-PM PVD AlCrN Metric (mm) N N1PC Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] [mm] T400-NM100JA-M3 ● M 3 0.50 3.00 4.00 18.00 6HX 46.00 5.00 4 2.80 JIS C = 2-3xTP T400-NM100JA-M4 ● M 4 0.70 4.00 5.00 21.00 6HX 52.00 7.00 5 3.70 JIS C = 2-3xTP T400-NM100JA-M5 ● M 5 0.80 5.00 5.50 25.00 6HX 60.00 8.00 5 4.65 JIS C = 2-3xTP T400-NM100JA-M6 ● M 6 1.00 6.00 6.00 30.00 6HX 62.00 10.00 5 5.60 JIS C = 2-3xTP T400-NM100JA-M8 ● M 8 1.25 8.00 6.20 32.00 6HX 65.00 13.00 5 7.45 JIS C = 2-3xTP T400-NM100JA-M10 ● M 10 1.50 10.00 7.00 35.00 6HX 75.00 15.00 6 9.35 JIS C = 2-3xTP T400-NM101JA-M12 ● M 12 1.75 12.00 8.50 40.00 6HX 82.00 18.00 8 11.25 JIS C = 2-3xTP T400-NM101JA-M14 ● M 14 2.00 14.00 10.50 40.00 6HX 88.00 20.00 8 13.10 JIS C = 2-3xTP T400-NM101JA-M16 ● M 16 2.00 16.00 12.50 40.00 6HX 95.00 20.00 8 15.10 JIS C = 2-3xTP ● = First choice ○ = Good choice 595
