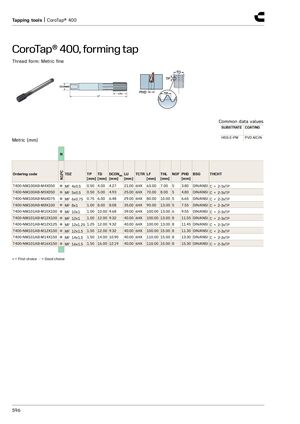

Tapping tools | CoroTap® 400 CoroTap® 400, forming tap​​ Thread form: Metric fine Common data values SUBSTRATE COATING HSS-E-PM PVD AlCrN Metric (mm) N N1PC Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] [mm] T400-NM100AB-M4X050 ● MF 4x0.5 0.50 4.00 4.27 21.00 6HX 63.00 7.00 5 3.80 DIN/ANSI C = 2-3xTP T400-NM100AB-M5X050 ● MF 5x0.5 0.50 5.00 4.93 25.00 6HX 70.00 8.00 5 4.80 DIN/ANSI C = 2-3xTP T400-NM100AB-M6X075 ● MF 6x0.75 0.75 6.00 6.48 29.00 6HX 80.00 10.00 5 6.65 DIN/ANSI C = 2-3xTP T400-NM100AB-M8X100 ● MF 8x1 1.00 8.00 8.08 35.00 6HX 90.00 13.00 5 7.55 DIN/ANSI C = 2-3xTP T400-NM101AB-M10X100 ● MF 10x1 1.00 10.00 9.68 39.00 6HX 100.00 13.00 6 9.55 DIN/ANSI C = 2-3xTP T400-NM101AB-M12X100 ● MF 12x1 1.00 12.00 9.32 40.00 6HX 100.00 13.00 8 11.55 DIN/ANSI C = 2-3xTP T400-NM101AB-M12X125 ● MF 12x1.25 1.25 12.00 9.32 40.00 6HX 100.00 13.00 8 11.45 DIN/ANSI C = 2-3xTP T400-NM101AB-M12X150 ● MF 12x1.5 1.50 12.00 9.32 40.00 6HX 100.00 15.00 8 11.30 DIN/ANSI C = 2-3xTP T400-NM101AB-M14X150 ● MF 14x1.5 1.50 14.00 10.90 40.00 6HX 110.00 15.00 8 13.30 DIN/ANSI C = 2-3xTP T400-NM101AB-M16X150 ● MF 16x1.5 1.50 16.00 12.19 40.00 6HX 110.00 15.00 8 15.30 DIN/ANSI C = 2-3xTP ● = First choice ○ = Good choice 596
