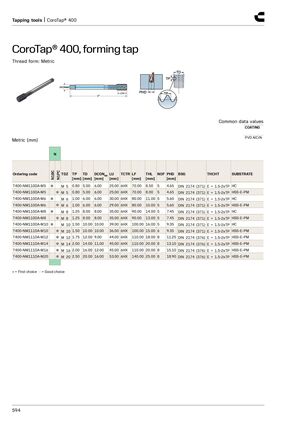

Tapping tools | CoroTap® 400 CoroTap® 400, forming tap​​ Thread form: Metric Common data values COATING PVD AlCrN Metric (mm) N N1BC N1PC Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT SUBSTRATE [mm] [mm] [mm] [mm] [mm] [mm] [mm] T400-NM110DA-M5 ● M 5 0.80 5.00 6.00 25.00 6HX 70.00 8.50 5 4.65 DIN 2174 (371) E = 1.5-2xTP HC T400-NM110DA-M5 ● M 5 0.80 5.00 6.00 25.00 6HX 70.00 8.00 5 4.65 DIN 2174 (371) E = 1.5-2xTP HSS-E-PM T400-NM110DA-M6 ● M 6 1.00 6.00 6.00 30.00 6HX 80.00 11.00 5 5.60 DIN 2174 (371) E = 1.5-2xTP HC T400-NM110DA-M6 ● M 6 1.00 6.00 6.00 29.00 6HX 80.00 10.00 5 5.60 DIN 2174 (371) E = 1.5-2xTP HSS-E-PM T400-NM110DA-M8 ● M 8 1.25 8.00 8.00 35.00 6HX 90.00 14.00 5 7.45 DIN 2174 (371) E = 1.5-2xTP HC T400-NM110DA-M8 ●M8 1.25 8.00 8.00 35.00 6HX 90.00 13.00 5 7.45 DIN 2174 (371) E = 1.5-2xTP HSS-E-PM T400-NM110DA-M10 ● M 10 1.50 10.00 10.00 39.00 6HX 100.00 16.00 5 9.35 DIN 2174 (371) E = 1.5-2xTP HC T400-NM111DA-M10 ● M 10 1.50 10.00 10.00 36.00 6HX 100.00 15.00 6 9.35 DIN 2174 (371) E = 1.5-2xTP HSS-E-PM T400-NM111DA-M12 ● M 12 1.75 12.00 9.00 44.00 6HX 110.00 18.00 8 11.25 DIN 2174 (376) E = 1.5-2xTP HSS-E-PM T400-NM111DA-M14 ● M 14 2.00 14.00 11.00 45.00 6HX 110.00 20.00 8 13.10 DIN 2174 (376) E = 1.5-2xTP HSS-E-PM T400-NM111DA-M16 ● M 16 2.00 16.00 12.00 45.00 6HX 110.00 20.00 8 15.10 DIN 2174 (376) E = 1.5-2xTP HSS-E-PM T400-NM111DA-M20 ● M 20 2.50 20.00 16.00 53.00 6HX 140.00 25.00 8 18.90 DIN 2174 (376) E = 1.5-2xTP HSS-E-PM ● = First choice ○ = Good choice 594
