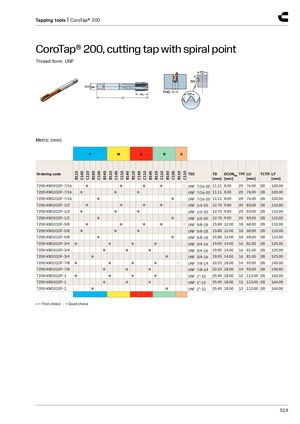

Tapping tools | CoroTap® 200 CoroTap® 200, cutting tap with spiral point​​ Thread form: UNF Metric (mm) P M K N S B110 B150 B145 B110 B145 B110 B145 B110 B150 B110 C145 C110 C150 C145 C110 C145 C110 C110 C150 C110 Ordering code TDZ TD DCONMS TPI LU TCTR LF [mm] [mm] [mm] [mm] T200-XM101DF-7/16 ● ● ● ● ○ UNF 7/16-20 11.11 8.00 20 76.00 2B 100.00 T200-XM101DF-7/16 ● ● ● UNF 7/16-20 11.11 8.00 20 76.00 2B 100.00 T200-XM101DF-7/16 ● ● UNF 7/16-20 11.11 8.00 20 76.00 2B 100.00 T200-XM101DF-1/2 ● ● ● ● ○ UNF 1/2-20 12.70 9.00 20 83.00 2B 110.00 T200-XM101DF-1/2 ● ● ● UNF 1/2-20 12.70 9.00 20 83.00 2B 110.00 T200-XM101DF-1/2 ● ● UNF 1/2-20 12.70 9.00 20 83.00 2B 110.00 T200-XM101DF-5/8 ● ● ● ● ○ UNF 5/8-18 15.88 12.00 18 68.00 2B 110.00 T200-XM101DF-5/8 ● ● ● UNF 5/8-18 15.88 12.00 18 68.00 2B 110.00 T200-XM101DF-5/8 ● ● UNF 5/8-18 15.88 12.00 18 68.00 2B 110.00 T200-XM101DF-3/4 ● ● ● ● ○ UNF 3/4-16 19.05 14.00 16 81.00 2B 125.00 T200-XM101DF-3/4 ● ● ● UNF 3/4-16 19.05 14.00 16 81.00 2B 125.00 T200-XM101DF-3/4 ● ● UNF 3/4-16 19.05 14.00 16 81.00 2B 125.00 T200-XM101DF-7/8 ● ● ● ● ○ UNF 7/8-14 22.23 18.00 14 93.00 2B 140.00 T200-XM101DF-7/8 ● ● ● UNF 7/8-14 22.23 18.00 14 93.00 2B 140.00 T200-XM101DF-1 ● ● ● ● ○ UNF 1”-12 25.40 18.00 12 113.00 2B 160.00 T200-XM101DF-1 ● ● ● UNF 1”-12 25.40 18.00 12 113.00 2B 160.00 T200-XM101DF-1 ● ● UNF 1”-12 25.40 18.00 12 113.00 2B 160.00 ● = First choice ○ = Good choice 519
