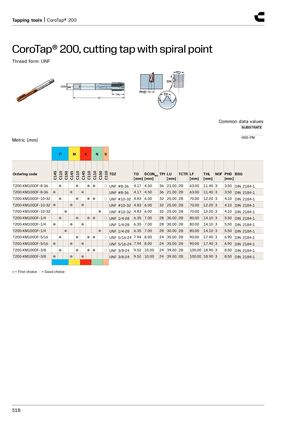

Tapping tools | CoroTap® 200 CoroTap® 200, cutting tap with spiral point​​ Thread form: UNF Common data values SUBSTRATE HSS-PM Metric (mm) P M K N S C145 C110 C150 C145 C110 C145 C110 C110 C150 C110 Ordering code TDZ TD DCONMS TPI LU TCTR LF THL NOF PHD BSG [mm] [mm] [mm] [mm] [mm] [mm] T200-XM100DF-8-36 ● ● ●● ○ UNF #8-36 4.17 4.50 36 21.00 2B 63.00 11.40 3 3.50 DIN 2184-1 T200-XM100DF-8-36 ● ● ● UNF #8-36 4.17 4.50 36 21.00 2B 63.00 11.40 3 3.50 DIN 2184-1 T200-XM100DF-10-32 ● ● ●● ○ UNF #10-32 4.83 6.00 32 25.00 2B 70.00 12.20 3 4.10 DIN 2184-1 T200-XM100DF-10-32 ● ● ● UNF #10-32 4.83 6.00 32 25.00 2B 70.00 12.20 3 4.10 DIN 2184-1 T200-XM100DF-10-32 ● ● UNF #10-32 4.83 6.00 32 25.00 2B 70.00 12.20 3 4.10 DIN 2184-1 T200-XM100DF-1/4 ● ● ●● ○ UNF 1/4-28 6.35 7.00 28 30.00 2B 80.00 14.10 3 5.50 DIN 2184-1 T200-XM100DF-1/4 ● ● ● UNF 1/4-28 6.35 7.00 28 30.00 2B 80.00 14.10 3 5.50 DIN 2184-1 T200-XM100DF-1/4 ● ● UNF 1/4-28 6.35 7.00 28 30.00 2B 80.00 14.10 3 5.50 DIN 2184-1 T200-XM100DF-5/16 ● ● ●● ○ UNF 5/16-24 7.94 8.00 24 35.00 2B 90.00 17.40 3 6.90 DIN 2184-1 T200-XM100DF-5/16 ● ● ● UNF 5/16-24 7.94 8.00 24 35.00 2B 90.00 17.40 3 6.90 DIN 2184-1 T200-XM100DF-3/8 ● ● ●● ○ UNF 3/8-24 9.52 10.00 24 39.00 2B 100.00 18.90 3 8.50 DIN 2184-1 T200-XM100DF-3/8 ● ● ● UNF 3/8-24 9.52 10.00 24 39.00 2B 100.00 18.90 3 8.50 DIN 2184-1 ● = First choice ○ = Good choice 518
