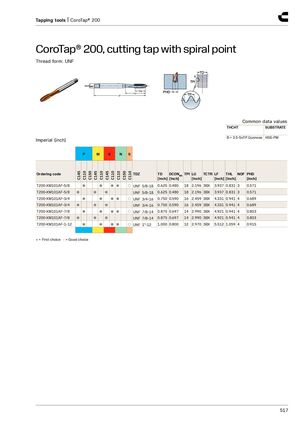

Tapping tools | CoroTap® 200 CoroTap® 200, cutting tap with spiral point​​ Thread form: UNF Common data values THCHT SUBSTRATE B = 3.5-5xTP Gunnose HSS-PM Imperial (inch) P M K N S C145 C110 C150 C145 C110 C145 C110 C110 C150 C110 Ordering code TDZ TD DCONMS TPI LU TCTR LF THL NOF PHD [inch] [inch] [inch] [inch] [inch] [inch] T200-XM101AF-5/8 ● ● ●● ○ UNF 5/8-18 0.625 0.480 18 2.196 3BX 3.937 0.831 3 0.571 T200-XM101AF-5/8 ● ● ● UNF 5/8-18 0.625 0.480 18 2.196 3BX 3.937 0.831 3 0.571 T200-XM101AF-3/4 ● ● ●● ○ UNF 3/4-16 0.750 0.590 16 2.459 3BX 4.331 0.941 4 0.689 T200-XM101AF-3/4 ● ● ● UNF 3/4-16 0.750 0.590 16 2.459 3BX 4.331 0.941 4 0.689 T200-XM101AF-7/8 ● ● ●● ○ UNF 7/8-14 0.875 0.697 14 2.990 3BX 4.921 0.941 4 0.803 T200-XM101AF-7/8 ● ● ● UNF 7/8-14 0.875 0.697 14 2.990 3BX 4.921 0.941 4 0.803 T200-XM101AF-1-12 ● ● ●● ○ UNF 1”-12 1.000 0.800 12 2.970 3BX 5.512 1.059 4 0.915 ● = First choice ○ = Good choice 517
