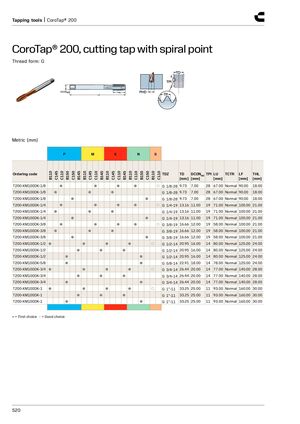

Tapping tools | CoroTap® 200 CoroTap® 200, cutting tap with spiral point​​ Thread form: G Metric (mm) P M K N S B110 B150 B145 B110 B145 B110 B145 B110 B150 B110 C145 C110 C150 C145 C110 C145 C110 C110 C150 C110 Ordering code TDZ TD DCONMS TPI LU TCTR LF THL [mm] [mm] [mm] [mm] [mm] T200-XM100DK-1/8 ● ● ● ● ○ G 1/8-28 9.73 7.00 28 67.00 Normal 90.00 18.00 T200-XM100DK-1/8 ● ● ● G 1/8-28 9.73 7.00 28 67.00 Normal 90.00 18.00 T200-XM100DK-1/8 ● ● G 1/8-28 9.73 7.00 28 67.00 Normal 90.00 18.00 T200-XM100DK-1/4 ● ● ● ● ○ G 1/4-19 13.16 11.00 19 71.00 Normal 100.00 21.00 T200-XM100DK-1/4 ● ● ● G 1/4-19 13.16 11.00 19 71.00 Normal 100.00 21.00 T200-XM100DK-1/4 ● ● G 1/4-19 13.16 11.00 19 71.00 Normal 100.00 21.00 T200-XM100DK-3/8 ● ● ● ● ○ G 3/8-19 16.66 12.00 19 58.00 Normal 100.00 21.00 T200-XM100DK-3/8 ● ● ● G 3/8-19 16.66 12.00 19 58.00 Normal 100.00 21.00 T200-XM100DK-3/8 ● ● G 3/8-19 16.66 12.00 19 58.00 Normal 100.00 21.00 T200-XM100DK-1/2 ● ● ● ● ○ G 1/2-14 20.95 16.00 14 80.00 Normal 125.00 24.00 T200-XM100DK-1/2 ● ● ● G 1/2-14 20.95 16.00 14 80.00 Normal 125.00 24.00 T200-XM100DK-1/2 ● ● G 1/2-14 20.95 16.00 14 80.00 Normal 125.00 24.00 T200-XM100DK-5/8 ● ● G 5/8-14 22.91 18.00 14 78.00 Normal 125.00 24.00 T200-XM100DK-3/4 ● ● ● ● ○ G 3/4-14 26.44 20.00 14 77.00 Normal 140.00 28.00 T200-XM100DK-3/4 ● ● ● G 3/4-14 26.44 20.00 14 77.00 Normal 140.00 28.00 T200-XM100DK-3/4 ● ● G 3/4-14 26.44 20.00 14 77.00 Normal 140.00 28.00 T200-XM100DK-1 ● ● ● ● ○ G 1”-11 33.25 25.00 11 93.00 Normal 160.00 30.00 T200-XM100DK-1 ● ● ● G 1”-11 33.25 25.00 11 93.00 Normal 160.00 30.00 T200-XM100DK-1 ● ● G 1”-11 33.25 25.00 11 93.00 Normal 160.00 30.00 ● = First choice ○ = Good choice 520
