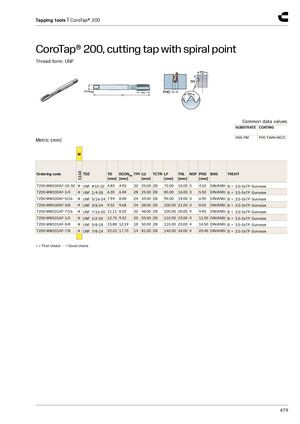

Tapping tools | CoroTap® 200 CoroTap® 200, cutting tap with spiral point​​ Thread form: UNF Common data values SUBSTRATE COATING HSS-PM PVD TiAlN+WC/C Metric (mm) M C110 Ordering code TDZ TD DCONMS TPI LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] T200-MM100AF-10-32 ● UNF #10-32 4.83 4.93 32 25.00 2B 70.00 15.00 3 4.10 DIN/ANSI B = 3.5-5xTP Gunnose T200-MM100AF-1/4 ● UNF 1/4-28 6.35 6.48 28 25.00 2B 80.00 16.00 3 5.50 DIN/ANSI B = 3.5-5xTP Gunnose T200-MM100AF-5/16 ● UNF 5/16-24 7.94 8.08 24 34.00 2B 90.00 19.00 3 6.90 DIN/ANSI B = 3.5-5xTP Gunnose T200-MM100AF-3/8 ● UNF 3/8-24 9.52 9.68 24 38.00 2B 100.00 21.00 3 8.50 DIN/ANSI B = 3.5-5xTP Gunnose T200-MM101AF-7/16 ● UNF 7/16-20 11.11 8.20 20 48.00 2B 100.00 20.00 4 9.90 DIN/ANSI B = 3.5-5xTP Gunnose T200-MM101AF-1/2 ● UNF 1/2-20 12.70 9.32 20 55.00 2B 110.00 23.00 4 11.50 DIN/ANSI B = 3.5-5xTP Gunnose T200-MM101AF-5/8 ● UNF 5/8-18 15.88 12.19 18 50.00 2B 110.00 23.00 4 14.50 DIN/ANSI B = 3.5-5xTP Gunnose T200-MM101AF-7/8 ● UNF 7/8-14 22.23 17.70 14 81.00 2B 140.00 34.00 4 20.40 DIN/ANSI B = 3.5-5xTP Gunnose ● = First choice ○ = Good choice 479
