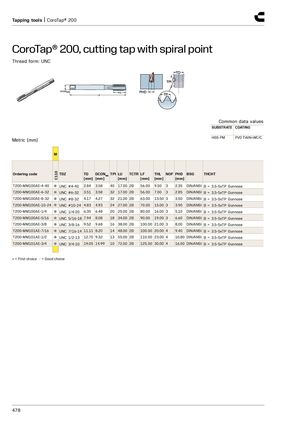

Tapping tools | CoroTap® 200 CoroTap® 200, cutting tap with spiral point​​ Thread form: UNC Common data values SUBSTRATE COATING HSS-PM PVD TiAlN+WC/C Metric (mm) M C110 Ordering code TDZ TD DCONMS TPI LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] T200-MM100AE-4-40 ● UNC #4-40 2.84 3.58 40 17.00 2B 56.00 9.50 3 2.35 DIN/ANSI B = 3.5-5xTP Gunnose T200-MM100AE-6-32 ● UNC #6-32 3.51 3.58 32 17.00 2B 56.00 7.00 3 2.85 DIN/ANSI B = 3.5-5xTP Gunnose T200-MM100AE-8-32 ● UNC #8-32 4.17 4.27 32 21.00 2B 63.00 13.50 3 3.50 DIN/ANSI B = 3.5-5xTP Gunnose T200-MM100AE-10-24 ● UNC #10-24 4.83 4.93 24 27.00 2B 70.00 15.00 3 3.90 DIN/ANSI B = 3.5-5xTP Gunnose T200-MM100AE-1/4 ● UNC 1/4-20 6.35 6.48 20 25.00 2B 80.00 16.00 3 5.10 DIN/ANSI B = 3.5-5xTP Gunnose T200-MM100AE-5/16 ● UNC 5/16-18 7.94 8.08 18 34.00 2B 90.00 19.00 3 6.60 DIN/ANSI B = 3.5-5xTP Gunnose T200-MM100AE-3/8 ● UNC 3/8-16 9.52 9.68 16 38.00 2B 100.00 21.00 3 8.00 DIN/ANSI B = 3.5-5xTP Gunnose T200-MM101AE-7/16 ● UNC 7/16-14 11.11 8.20 14 48.00 2B 100.00 20.00 4 9.40 DIN/ANSI B = 3.5-5xTP Gunnose T200-MM101AE-1/2 ● UNC 1/2-13 12.70 9.32 13 55.00 2B 110.00 23.00 4 10.80 DIN/ANSI B = 3.5-5xTP Gunnose T200-MM101AE-3/4 ● UNC 3/4-10 19.05 14.99 10 72.00 2B 125.00 30.00 4 16.50 DIN/ANSI B = 3.5-5xTP Gunnose ● = First choice ○ = Good choice 478
