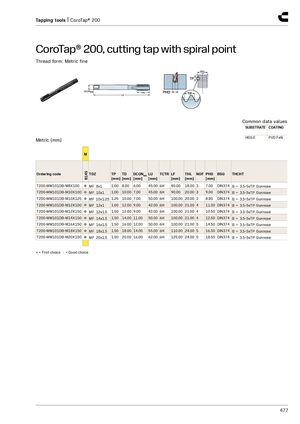

Tapping tools | CoroTap® 200 CoroTap® 200, cutting tap with spiral point​​ Thread form: Metric fine Common data values SUBSTRATE COATING HSS-E PVD FeN Metric (mm) M B145 Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] [mm] T200-MM101DB-M8X100 ● MF 8x1 1.00 8.00 6.00 45.00 6H 90.00 18.00 3 7.00 DIN374 B = 3.5-5xTP Gunnose T200-MM101DB-M10X100 ● MF 10x1 1.00 10.00 7.00 45.00 6H 90.00 20.00 3 9.00 DIN374 B = 3.5-5xTP Gunnose T200-MM101DB-M10X125 ● MF 10x1.25 1.25 10.00 7.00 50.00 6H 100.00 20.00 3 8.80 DIN374 B = 3.5-5xTP Gunnose T200-MM101DB-M12X100 ● MF 12x1 1.00 12.00 9.00 42.00 6H 100.00 21.00 4 11.00 DIN374 B = 3.5-5xTP Gunnose T200-MM101DB-M12X150 ● MF 12x1.5 1.50 12.00 9.00 42.00 6H 100.00 21.00 4 10.50 DIN374 B = 3.5-5xTP Gunnose T200-MM101DB-M14X150 ● MF 14x1.5 1.50 14.00 11.00 50.00 6H 100.00 21.00 4 12.50 DIN374 B = 3.5-5xTP Gunnose T200-MM101DB-M16X150 ● MF 16x1.5 1.50 16.00 12.00 50.00 6H 100.00 21.00 5 14.50 DIN374 B = 3.5-5xTP Gunnose T200-MM101DB-M18X150 ● MF 18x1.5 1.50 18.00 14.00 55.00 6H 110.00 24.00 5 16.50 DIN374 B = 3.5-5xTP Gunnose T200-MM101DB-M20X150 ● MF 20x1.5 1.50 20.00 16.00 62.00 6H 125.00 24.00 5 18.50 DIN374 B = 3.5-5xTP Gunnose ● = First choice ○ = Good choice 477
