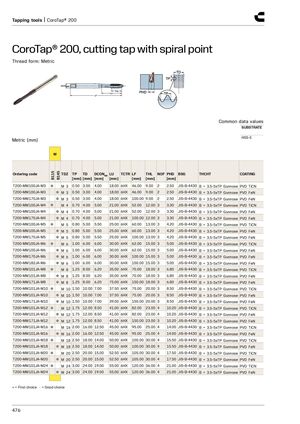

Tapping tools | CoroTap® 200 CoroTap® 200, cutting tap with spiral point Thread form: Metric Common data values SUBSTRATE HSS-E Metric (mm) M B115 B145 Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT COATING [mm] [mm] [mm] [mm] [mm] [mm] [mm] T200-MM100JA-M3 ● M 3 0.50 3.00 4.00 18.00 6HX 46.00 9.00 2 2.50 JIS-B-4430 B = 3.5-5xTP Gunnose PVD TiCN T200-MM100JA-M3 ● M 3 0.50 3.00 4.00 18.00 6HX 46.00 9.00 2 2.50 JIS-B-4430 B = 3.5-5xTP Gunnose PVD FeN T200-MM170JA-M3 ● M 3 0.50 3.00 4.00 18.00 6HX 100.00 9.00 2 2.50 JIS-B-4430 B = 3.5-5xTP Gunnose PVD FeN T200-MM100JA-M4 ● M 4 0.70 4.00 5.00 21.00 6HX 52.00 12.00 3 3.30 JIS-B-4430 B = 3.5-5xTP Gunnose PVD TiCN T200-MM100JA-M4 ● M 4 0.70 4.00 5.00 21.00 6HX 52.00 12.00 3 3.30 JIS-B-4430 B = 3.5-5xTP Gunnose PVD FeN T200-MM170JA-M4 ● M 4 0.70 4.00 5.00 21.00 6HX 100.00 12.00 3 3.30 JIS-B-4430 B = 3.5-5xTP Gunnose PVD FeN T200-MM100JA-M5 ● M 5 0.80 5.00 5.50 25.00 6HX 60.00 13.00 3 4.20 JIS-B-4430 B = 3.5-5xTP Gunnose PVD TiCN T200-MM100JA-M5 ● M 5 0.80 5.00 5.50 25.00 6HX 60.00 13.00 3 4.20 JIS-B-4430 B = 3.5-5xTP Gunnose PVD FeN T200-MM170JA-M5 ● M 5 0.80 5.00 5.50 25.00 6HX 100.00 13.00 3 4.20 JIS-B-4430 B = 3.5-5xTP Gunnose PVD FeN T200-MM100JA-M6 ● M 6 1.00 6.00 6.00 30.00 6HX 62.00 15.00 3 5.00 JIS-B-4430 B = 3.5-5xTP Gunnose PVD TiCN T200-MM100JA-M6 ● M 6 1.00 6.00 6.00 30.00 6HX 62.00 15.00 3 5.00 JIS-B-4430 B = 3.5-5xTP Gunnose PVD FeN T200-MM170JA-M6 ● M 6 1.00 6.00 6.00 30.00 6HX 100.00 15.00 3 5.00 JIS-B-4430 B = 3.5-5xTP Gunnose PVD FeN T200-MM182JA-M6 ● M 6 1.00 6.00 6.00 30.00 6HX 150.00 15.00 3 5.00 JIS-B-4430 B = 3.5-5xTP Gunnose PVD FeN T200-MM101JA-M8 ● M 8 1.25 8.00 6.20 35.00 6HX 70.00 18.00 3 6.80 JIS-B-4430 B = 3.5-5xTP Gunnose PVD TiCN T200-MM101JA-M8 ● M 8 1.25 8.00 6.20 35.00 6HX 70.00 18.00 3 6.80 JIS-B-4430 B = 3.5-5xTP Gunnose PVD FeN T200-MM171JA-M8 ● M 8 1.25 8.00 6.20 75.00 6HX 150.00 18.00 3 6.80 JIS-B-4430 B = 3.5-5xTP Gunnose PVD FeN T200-MM101JA-M10 ● M 10 1.50 10.00 7.00 37.50 6HX 75.00 20.00 3 8.50 JIS-B-4430 B = 3.5-5xTP Gunnose PVD TiCN T200-MM101JA-M10 ● M 10 1.50 10.00 7.00 37.50 6HX 75.00 20.00 3 8.50 JIS-B-4430 B = 3.5-5xTP Gunnose PVD FeN T200-MM171JA-M10 ● M 10 1.50 10.00 7.00 39.00 6HX 150.00 20.00 3 8.50 JIS-B-4430 B = 3.5-5xTP Gunnose PVD FeN T200-MM101JA-M12 ● M 12 1.75 12.00 8.50 41.00 6HX 82.00 23.00 4 10.20 JIS-B-4430 B = 3.5-5xTP Gunnose PVD TiCN T200-MM101JA-M12 ● M 12 1.75 12.00 8.50 41.00 6HX 82.00 23.00 4 10.20 JIS-B-4430 B = 3.5-5xTP Gunnose PVD FeN T200-MM171JA-M12 ● M 12 1.75 12.00 8.50 41.00 6HX 150.00 23.00 3 10.20 JIS-B-4430 B = 3.5-5xTP Gunnose PVD FeN T200-MM101JA-M16 ● M 16 2.00 16.00 12.50 45.00 6HX 95.00 25.00 4 14.00 JIS-B-4430 B = 3.5-5xTP Gunnose PVD TiCN T200-MM101JA-M16 ● M 16 2.00 16.00 12.50 45.00 6HX 95.00 25.00 4 14.00 JIS-B-4430 B = 3.5-5xTP Gunnose PVD FeN T200-MM101JA-M18 ● M 18 2.50 18.00 14.00 50.00 6HX 100.00 30.00 4 15.50 JIS-B-4430 B = 3.5-5xTP Gunnose PVD TiCN T200-MM101JA-M18 ● M 18 2.50 18.00 14.00 50.00 6HX 100.00 30.00 4 15.50 JIS-B-4430 B = 3.5-5xTP Gunnose PVD FeN T200-MM101JA-M20 ● M 20 2.50 20.00 15.00 52.50 6HX 105.00 30.00 4 17.50 JIS-B-4430 B = 3.5-5xTP Gunnose PVD TiCN T200-MM101JA-M20 ● M 20 2.50 20.00 15.00 52.50 6HX 105.00 30.00 4 17.50 JIS-B-4430 B = 3.5-5xTP Gunnose PVD FeN T200-MM101JA-M24 ● M 24 3.00 24.00 19.00 55.00 6HX 120.00 36.00 4 21.00 JIS-B-4430 B = 3.5-5xTP Gunnose PVD TiCN T200-MM101JA-M24 ● M 24 3.00 24.00 19.00 55.00 6HX 120.00 36.00 4 21.00 JIS-B-4430 B = 3.5-5xTP Gunnose PVD FeN ● = First choice ○ = Good choice 476
