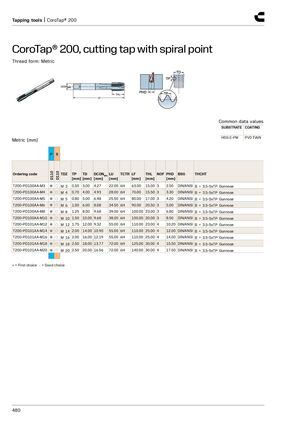

Tapping tools | CoroTap® 200 CoroTap® 200, cutting tap with spiral point​​ Thread form: Metric Common data values SUBSTRATE COATING HSS-E-PM PVD TiAlN Metric (mm) P S D110 D110 Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] [mm] T200-PD100AA-M3 ● ○ M 3 0.50 3.00 4.27 22.00 6H 63.00 15.00 3 2.50 DIN/ANSI B = 3.5-5xTP Gunnose T200-PD100AA-M4 ● ○ M 4 0.70 4.00 4.93 28.00 6H 70.00 15.50 3 3.30 DIN/ANSI B = 3.5-5xTP Gunnose T200-PD100AA-M5 ● ○ M 5 0.80 5.00 6.48 25.50 6H 80.00 17.00 3 4.20 DIN/ANSI B = 3.5-5xTP Gunnose T200-PD100AA-M6 ● ○ M 6 1.00 6.00 8.08 34.50 6H 90.00 20.50 3 5.00 DIN/ANSI B = 3.5-5xTP Gunnose T200-PD100AA-M8 ● ○ M 8 1.25 8.00 9.68 39.00 6H 100.00 23.00 3 6.80 DIN/ANSI B = 3.5-5xTP Gunnose T200-PD100AA-M10 ● ○ M 10 1.50 10.00 9.68 38.00 6H 100.00 20.00 3 8.50 DIN/ANSI B = 3.5-5xTP Gunnose T200-PD101AA-M12 ● ○ M 12 1.75 12.00 9.32 55.00 6H 110.00 23.00 4 10.20 DIN/ANSI B = 3.5-5xTP Gunnose T200-PD101AA-M14 ● ○ M 14 2.00 14.00 10.90 55.00 6H 110.00 25.00 4 12.00 DIN/ANSI B = 3.5-5xTP Gunnose T200-PD101AA-M16 ● ○ M 16 2.00 16.00 12.19 55.00 6H 110.00 25.00 4 14.00 DIN/ANSI B = 3.5-5xTP Gunnose T200-PD101AA-M18 ● ○ M 18 2.50 18.00 13.77 72.00 6H 125.00 30.00 4 15.50 DIN/ANSI B = 3.5-5xTP Gunnose T200-PD101AA-M20 ● ○ M 20 2.50 20.00 16.56 72.00 6H 140.00 30.00 4 17.50 DIN/ANSI B = 3.5-5xTP Gunnose ● = First choice ○ = Good choice 480
