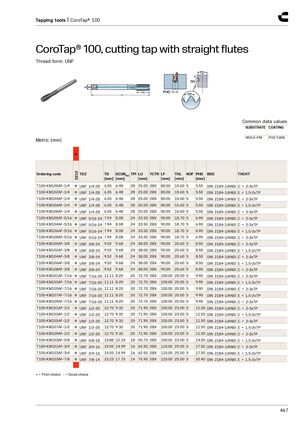

Tapping tools | CoroTap® 100 CoroTap® 100, cutting tap with straight flutes​​ Thread form: UNF Common data values SUBSTRATE COATING HSS-E-PM PVD TiAlN Metric (mm) K D210 Ordering code TDZ TD DCONMS TPI LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] T100-KM100AF-1/4 ● UNF 1/4-28 6.35 6.48 28 25.00 2BX 80.00 15.60 5 5.50 DIN 2184-1/ANSI C = 2-3xTP T100-KM102AF-1/4 ● UNF 1/4-28 6.35 6.48 28 25.00 2BX 80.00 15.60 5 5.50 DIN 2184-1/ANSI E = 1.5-2xTP T100-KM104AF-1/4 ● UNF 1/4-28 6.35 6.48 28 25.00 2BX 80.00 15.60 5 5.50 DIN 2184-1/ANSI C = 2-3xTP T100-KM106AF-1/4 ● UNF 1/4-28 6.35 6.48 28 25.00 2BX 80.00 15.60 5 5.50 DIN 2184-1/ANSI E = 1.5-2xTP T100-KM108AF-1/4 ● UNF 1/4-28 6.35 6.48 28 25.00 2BX 80.00 15.60 5 5.50 DIN 2184-1/ANSI C = 2-3xTP T100-KM100AF-5/16 ● UNF 5/16-24 7.94 8.08 24 33.50 2BX 90.00 18.70 5 6.90 DIN 2184-1/ANSI C = 2-3xTP T100-KM104AF-5/16 ● UNF 5/16-24 7.94 8.08 24 33.50 2BX 90.00 18.70 5 6.90 DIN 2184-1/ANSI C = 2-3xTP T100-KM106AF-5/16 ● UNF 5/16-24 7.94 8.08 24 33.50 2BX 90.00 18.70 5 6.90 DIN 2184-1/ANSI E = 1.5-2xTP T100-KM108AF-5/16 ● UNF 5/16-24 7.94 8.08 24 33.50 2BX 90.00 18.70 5 6.90 DIN 2184-1/ANSI C = 2-3xTP T100-KM100AF-3/8 ● UNF 3/8-24 9.52 9.68 24 38.00 2BX 90.00 20.60 5 8.50 DIN 2184-1/ANSI C = 2-3xTP T100-KM102AF-3/8 ● UNF 3/8-24 9.52 9.68 24 38.00 2BX 90.00 20.60 5 8.50 DIN 2184-1/ANSI E = 1.5-2xTP T100-KM104AF-3/8 ● UNF 3/8-24 9.52 9.68 24 38.00 2BX 90.00 20.60 5 8.50 DIN 2184-1/ANSI C = 2-3xTP T100-KM106AF-3/8 ● UNF 3/8-24 9.52 9.68 24 38.00 2BX 90.00 20.60 5 8.50 DIN 2184-1/ANSI E = 1.5-2xTP T100-KM108AF-3/8 ● UNF 3/8-24 9.52 9.68 24 38.00 2BX 90.00 20.60 5 8.50 DIN 2184-1/ANSI C = 2-3xTP T100-KM101AF-7/16 ● UNF 7/16-20 11.11 8.20 20 72.70 2BX 100.00 20.00 5 9.90 DIN 2184-1/ANSI C = 2-3xTP T100-KM103AF-7/16 ● UNF 7/16-20 11.11 8.20 20 72.70 2BX 100.00 20.00 5 9.90 DIN 2184-1/ANSI E = 1.5-2xTP T100-KM105AF-7/16 ● UNF 7/16-20 11.11 8.20 20 72.70 2BX 100.00 20.00 5 9.90 DIN 2184-1/ANSI C = 2-3xTP T100-KM107AF-7/16 ● UNF 7/16-20 11.11 8.20 20 72.70 2BX 100.00 20.00 5 9.90 DIN 2184-1/ANSI E = 1.5-2xTP T100-KM109AF-7/16 ● UNF 7/16-20 11.11 8.20 20 72.70 2BX 100.00 20.00 5 9.90 DIN 2184-1/ANSI C = 2-3xTP T100-KM101AF-1/2 ● UNF 1/2-20 12.70 9.32 20 71.90 2BX 100.00 23.00 5 11.50 DIN 2184-1/ANSI C = 2-3xTP T100-KM103AF-1/2 ● UNF 1/2-20 12.70 9.32 20 71.90 2BX 100.00 23.00 5 11.50 DIN 2184-1/ANSI E = 1.5-2xTP T100-KM105AF-1/2 ● UNF 1/2-20 12.70 9.32 20 71.90 2BX 100.00 23.00 5 11.50 DIN 2184-1/ANSI C = 2-3xTP T100-KM107AF-1/2 ● UNF 1/2-20 12.70 9.32 20 71.90 2BX 100.00 23.00 5 11.50 DIN 2184-1/ANSI E = 1.5-2xTP T100-KM109AF-1/2 ● UNF 1/2-20 12.70 9.32 20 71.90 2BX 100.00 23.00 5 11.50 DIN 2184-1/ANSI C = 2-3xTP T100-KM103AF-5/8 ● UNF 5/8-18 15.88 12.19 18 55.70 2BX 100.00 23.00 5 14.50 DIN 2184-1/ANSI E = 1.5-2xTP T100-KM101AF-3/4 ● UNF 3/4-16 19.05 14.99 16 62.50 2BX 110.00 25.00 5 17.50 DIN 2184-1/ANSI C = 2-3xTP T100-KM103AF-3/4 ● UNF 3/4-16 19.05 14.99 16 62.50 2BX 110.00 25.00 5 17.50 DIN 2184-1/ANSI E = 1.5-2xTP T100-KM103AF-7/8 ● UNF 7/8-14 22.23 17.70 14 75.95 2BX 125.00 25.00 5 20.40 DIN 2184-1/ANSI E = 1.5-2xTP ● = First choice ○ = Good choice 467
