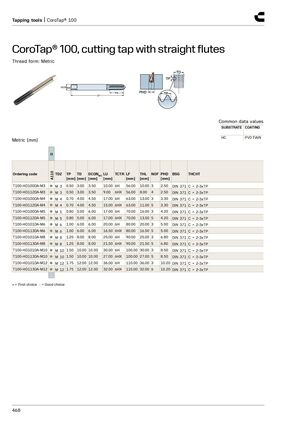

Tapping tools | CoroTap® 100 CoroTap® 100, cutting tap with straight flutes Thread form: Metric Common data values SUBSTRATE COATING HC PVD TiAlN Metric (mm) H A110 Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] [mm] T100-HD100DA-M3 ● M 3 0.50 3.00 3.50 10.00 6H 56.00 10.00 3 2.50 DIN 371 C = 2-3xTP T100-HD112DA-M3 ● M 3 0.50 3.00 3.50 9.00 6HX 56.00 8.00 4 2.50 DIN 371 C = 2-3xTP T100-HD100DA-M4 ● M 4 0.70 4.00 4.50 17.00 6H 63.00 13.00 3 3.30 DIN 371 C = 2-3xTP T100-HD112DA-M4 ● M 4 0.70 4.00 4.50 15.00 6HX 63.00 11.00 5 3.30 DIN 371 C = 2-3xTP T100-HD100DA-M5 ● M 5 0.80 5.00 6.00 17.00 6H 70.00 16.00 3 4.20 DIN 371 C = 2-3xTP T100-HD112DA-M5 ● M 5 0.80 5.00 6.00 17.00 6HX 70.00 13.50 5 4.20 DIN 371 C = 2-3xTP T100-HD101DA-M6 ● M 6 1.00 6.00 6.00 20.00 6H 80.00 20.00 3 5.00 DIN 371 C = 2-3xTP T100-HD113DA-M6 ● M 6 1.00 6.00 6.00 16.50 6HX 80.00 16.50 5 5.00 DIN 371 C = 2-3xTP T100-HD101DA-M8 ● M 8 1.25 8.00 8.00 25.00 6H 90.00 25.00 3 6.80 DIN 371 C = 2-3xTP T100-HD113DA-M8 ● M 8 1.25 8.00 8.00 21.50 6HX 90.00 21.50 5 6.80 DIN 371 C = 2-3xTP T100-HD101DA-M10 ● M 10 1.50 10.00 10.00 30.00 6H 100.00 30.00 3 8.50 DIN 371 C = 2-3xTP T100-HD113DA-M10 ● M 10 1.50 10.00 10.00 27.00 6HX 100.00 27.00 5 8.50 DIN 371 C = 2-3xTP T100-HD101DA-M12 ● M 12 1.75 12.00 12.00 36.00 6H 110.00 36.00 3 10.20 DIN 371 C = 2-3xTP T100-HD113DA-M12 ● M 12 1.75 12.00 12.00 32.00 6HX 110.00 32.00 6 10.20 DIN 371 C = 2-3xTP ● = First choice ○ = Good choice 468
