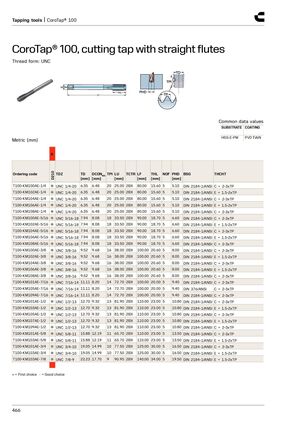

Tapping tools | CoroTap® 100 CoroTap® 100, cutting tap with straight flutes​​ Thread form: UNC Common data values SUBSTRATE COATING HSS-E-PM PVD TiAlN Metric (mm) K D210 Ordering code TDZ TD DCONMS TPI LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] T100-KM100AE-1/4 ● UNC 1/4-20 6.35 6.48 20 25.00 2BX 80.00 15.60 5 5.10 DIN 2184-1/ANSI C = 2-3xTP T100-KM102AE-1/4 ● UNC 1/4-20 6.35 6.48 20 25.00 2BX 80.00 15.60 5 5.10 DIN 2184-1/ANSI E = 1.5-2xTP T100-KM104AE-1/4 ● UNC 1/4-20 6.35 6.48 20 25.00 2BX 80.00 15.60 5 5.10 DIN 2184-1/ANSI C = 2-3xTP T100-KM106AE-1/4 ● UNC 1/4-20 6.35 6.48 20 25.00 2BX 80.00 15.60 5 5.10 DIN 2184-1/ANSI E = 1.5-2xTP T100-KM108AE-1/4 ● UNC 1/4-20 6.35 6.48 20 25.00 2BX 80.00 15.60 5 5.10 DIN 2184-1/ANSI C = 2-3xTP T100-KM100AE-5/16 ● UNC 5/16-18 7.94 8.08 18 33.50 2BX 90.00 18.70 5 6.60 DIN 2184-1/ANSI C = 2-3xTP T100-KM102AE-5/16 ● UNC 5/16-18 7.94 8.08 18 33.50 2BX 90.00 18.70 5 6.60 DIN 2184-1/ANSI E = 1.5-2xTP T100-KM104AE-5/16 ● UNC 5/16-18 7.94 8.08 18 33.50 2BX 90.00 18.70 5 6.60 DIN 2184-1/ANSI C = 2-3xTP T100-KM106AE-5/16 ● UNC 5/16-18 7.94 8.08 18 33.50 2BX 90.00 18.70 5 6.60 DIN 2184-1/ANSI E = 1.5-2xTP T100-KM108AE-5/16 ● UNC 5/16-18 7.94 8.08 18 33.50 2BX 90.00 18.70 5 6.60 DIN 2184-1/ANSI C = 2-3xTP T100-KM100AE-3/8 ● UNC 3/8-16 9.52 9.68 16 38.00 2BX 100.00 20.60 5 8.00 DIN 2184-1/ANSI C = 2-3xTP T100-KM102AE-3/8 ● UNC 3/8-16 9.52 9.68 16 38.00 2BX 100.00 20.60 5 8.00 DIN 2184-1/ANSI E = 1.5-2xTP T100-KM104AE-3/8 ● UNC 3/8-16 9.52 9.68 16 38.00 2BX 100.00 20.60 5 8.00 DIN 2184-1/ANSI C = 2-3xTP T100-KM106AE-3/8 ● UNC 3/8-16 9.52 9.68 16 38.00 2BX 100.00 20.60 5 8.00 DIN 2184-1/ANSI E = 1.5-2xTP T100-KM108AE-3/8 ● UNC 3/8-16 9.52 9.68 16 38.00 2BX 100.00 20.60 5 8.00 DIN 2184-1/ANSI C = 2-3xTP T100-KM101AE-7/16 ● UNC 7/16-14 11.11 8.20 14 72.70 2BX 100.00 20.00 5 9.40 DIN 2184-1/ANSI C = 2-3xTP T100-KM105AE-7/16 ● UNC 7/16-14 11.11 8.20 14 72.70 2BX 100.00 20.00 5 9.40 DIN 376/ANSI C = 2-3xTP T100-KM109AE-7/16 ● UNC 7/16-14 11.11 8.20 14 72.70 2BX 100.00 20.00 5 9.40 DIN 2184-1/ANSI C = 2-3xTP T100-KM101AE-1/2 ● UNC 1/2-13 12.70 9.32 13 81.90 2BX 110.00 23.00 5 10.80 DIN 2184-1/ANSI C = 2-3xTP T100-KM103AE-1/2 ● UNC 1/2-13 12.70 9.32 13 81.90 2BX 110.00 23.00 5 10.80 DIN 2184-1/ANSI E = 1.5-2xTP T100-KM105AE-1/2 ● UNC 1/2-13 12.70 9.32 13 81.90 2BX 110.00 23.00 5 10.80 DIN 2184-1/ANSI C = 2-3xTP T100-KM107AE-1/2 ● UNC 1/2-13 12.70 9.32 13 81.90 2BX 110.00 23.00 5 10.80 DIN 2184-1/ANSI E = 1.5-2xTP T100-KM109AE-1/2 ● UNC 1/2-13 12.70 9.32 13 81.90 2BX 110.00 23.00 5 10.80 DIN 2184-1/ANSI C = 2-3xTP T100-KM101AE-5/8 ● UNC 5/8-11 15.88 12.19 11 65.70 2BX 110.00 23.00 5 13.50 DIN 2184-1/ANSI C = 2-3xTP T100-KM103AE-5/8 ● UNC 5/8-11 15.88 12.19 11 65.70 2BX 110.00 23.00 5 13.50 DIN 2184-1/ANSI E = 1.5-2xTP T100-KM101AE-3/4 ● UNC 3/4-10 19.05 14.99 10 77.50 2BX 125.00 30.00 5 16.50 DIN 2184-1/ANSI C = 2-3xTP T100-KM103AE-3/4 ● UNC 3/4-10 19.05 14.99 10 77.50 2BX 125.00 30.00 5 16.50 DIN 2184-1/ANSI E = 1.5-2xTP T100-KM103AE-7/8 ● UNC 7/8-9 22.23 17.70 9 90.95 2BX 140.00 34.00 5 19.50 DIN 2184-1/ANSI E = 1.5-2xTP ● = First choice ○ = Good choice 466
