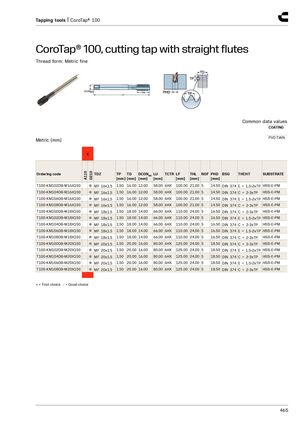

Tapping tools | CoroTap® 100 CoroTap® 100, cutting tap with straight flutes Thread form: Metric fine Common data values COATING PVD TiAlN Metric (mm) K D210 A110 Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT SUBSTRATE [mm] [mm] [mm] [mm] [mm] [mm] [mm] T100-KM102DB-M16X150 ● MF 16x1.5 1.50 16.00 12.00 58.00 6HX 100.00 21.00 5 14.50 DIN 374 E = 1.5-2xTP HSS-E-PM T100-KM104DB-M16X150 ● MF 16x1.5 1.50 16.00 12.00 58.00 6HX 100.00 21.00 5 14.50 DIN 374 C = 2-3xTP HSS-E-PM T100-KM106DB-M16X150 ● MF 16x1.5 1.50 16.00 12.00 58.00 6HX 100.00 21.00 5 14.50 DIN 374 E = 1.5-2xTP HSS-E-PM T100-KM108DB-M16X150 ● MF 16x1.5 1.50 16.00 12.00 58.00 6HX 100.00 21.00 5 14.50 DIN 374 C = 2-3xTP HSS-E-PM T100-KM100DB-M18X150 ● MF 18x1.5 1.50 18.00 14.00 66.00 6HX 110.00 24.00 5 16.50 DIN 374 C = 2-3xTP HSS-E-PM T100-KM102DB-M18X150 ● MF 18x1.5 1.50 18.00 14.00 66.00 6HX 110.00 24.00 5 16.50 DIN 374 E = 1.5-2xTP HSS-E-PM T100-KM104DB-M18X150 ● MF 18x1.5 1.50 18.00 14.00 66.00 6HX 110.00 24.00 5 16.50 DIN 374 C = 2-3xTP HSS-E-PM T100-KM106DB-M18X150 ● MF 18x1.5 1.50 18.00 14.00 66.00 6HX 110.00 24.00 5 16.50 DIN 374 E = 1.5-2xTP HSS-E-PM T100-KM108DB-M18X150 ● MF 18x1.5 1.50 18.00 14.00 66.00 6HX 110.00 24.00 5 16.50 DIN 374 C = 2-3xTP HSS-E-PM T100-KM100DB-M20X150 ● MF 20x1.5 1.50 20.00 16.00 80.00 6HX 125.00 24.00 5 18.50 DIN 374 C = 2-3xTP HSS-E-PM T100-KM102DB-M20X150 ● MF 20x1.5 1.50 20.00 16.00 80.00 6HX 125.00 24.00 5 18.50 DIN 374 E = 1.5-2xTP HSS-E-PM T100-KM104DB-M20X150 ● MF 20x1.5 1.50 20.00 16.00 80.00 6HX 125.00 24.00 5 18.50 DIN 374 C = 2-3xTP HSS-E-PM T100-KM106DB-M20X150 ● MF 20x1.5 1.50 20.00 16.00 80.00 6HX 125.00 24.00 5 18.50 DIN 374 E = 1.5-2xTP HSS-E-PM T100-KM108DB-M20X150 ● MF 20x1.5 1.50 20.00 16.00 80.00 6HX 125.00 24.00 5 18.50 DIN 374 C = 2-3xTP HSS-E-PM ● = First choice ○ = Good choice 465
