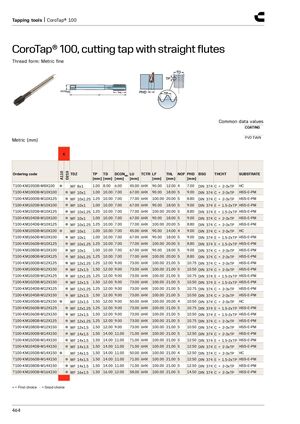

Tapping tools | CoroTap® 100 CoroTap® 100, cutting tap with straight flutes Thread form: Metric fine Common data values COATING PVD TiAlN Metric (mm) K D210 A110 Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT SUBSTRATE [mm] [mm] [mm] [mm] [mm] [mm] [mm] T100-KM105DB-M8X100 ● MF 8x1 1.00 8.00 6.00 45.00 6HX 90.00 12.00 4 7.00 DIN 374 C = 2-3xTP HC T100-KM100DB-M10X100 ● MF 10x1 1.00 10.00 7.00 67.00 6HX 90.00 18.00 5 9.00 DIN 374 C = 2-3xTP HSS-E-PM T100-KM100DB-M10X125 ● MF 10x1.25 1.25 10.00 7.00 77.00 6HX 100.00 20.00 5 8.80 DIN 374 C = 2-3xTP HSS-E-PM T100-KM102DB-M10X100 ● MF 10x1 1.00 10.00 7.00 67.00 6HX 90.00 18.00 5 9.00 DIN 374 E = 1.5-2xTP HSS-E-PM T100-KM102DB-M10X125 ● MF 10x1.25 1.25 10.00 7.00 77.00 6HX 100.00 20.00 5 8.80 DIN 374 E = 1.5-2xTP HSS-E-PM T100-KM104DB-M10X100 ● MF 10x1 1.00 10.00 7.00 67.00 6HX 90.00 18.00 5 9.00 DIN 374 C = 2-3xTP HSS-E-PM T100-KM104DB-M10X125 ● MF 10x1.25 1.25 10.00 7.00 77.00 6HX 100.00 20.00 5 8.80 DIN 374 C = 2-3xTP HSS-E-PM T100-KM105DB-M10X100 ● MF 10x1 1.00 10.00 7.00 45.00 6HX 90.00 14.00 4 9.00 DIN 374 C = 2-3xTP HC T100-KM106DB-M10X100 ● MF 10x1 1.00 10.00 7.00 67.00 6HX 90.00 18.00 5 9.00 DIN 374 E = 1.5-2xTP HSS-E-PM T100-KM106DB-M10X125 ● MF 10x1.25 1.25 10.00 7.00 77.00 6HX 100.00 20.00 5 8.80 DIN 374 E = 1.5-2xTP HSS-E-PM T100-KM108DB-M10X100 ● MF 10x1 1.00 10.00 7.00 67.00 6HX 90.00 18.00 5 9.00 DIN 374 C = 2-3xTP HSS-E-PM T100-KM108DB-M10X125 ● MF 10x1.25 1.25 10.00 7.00 77.00 6HX 100.00 20.00 5 8.80 DIN 374 C = 2-3xTP HSS-E-PM T100-KM100DB-M12X125 ● MF 12x1.25 1.25 12.00 9.00 73.00 6HX 100.00 21.00 5 10.75 DIN 374 C = 2-3xTP HSS-E-PM T100-KM100DB-M12X150 ● MF 12x1.5 1.50 12.00 9.00 73.00 6HX 100.00 21.00 5 10.50 DIN 374 C = 2-3xTP HSS-E-PM T100-KM102DB-M12X125 ● MF 12x1.25 1.25 12.00 9.00 73.00 6HX 100.00 21.00 5 10.75 DIN 374 E = 1.5-2xTP HSS-E-PM T100-KM102DB-M12X150 ● MF 12x1.5 1.50 12.00 9.00 73.00 6HX 100.00 21.00 5 10.50 DIN 374 E = 1.5-2xTP HSS-E-PM T100-KM104DB-M12X125 ● MF 12x1.25 1.25 12.00 9.00 73.00 6HX 100.00 21.00 5 10.75 DIN 374 C = 2-3xTP HSS-E-PM T100-KM104DB-M12X150 ● MF 12x1.5 1.50 12.00 9.00 73.00 6HX 100.00 21.00 5 10.50 DIN 374 C = 2-3xTP HSS-E-PM T100-KM105DB-M12X150 ● MF 12x1.5 1.50 12.00 9.00 50.00 6HX 100.00 20.00 4 10.50 DIN 374 C = 2-3xTP HC T100-KM106DB-M12X125 ● MF 12x1.25 1.25 12.00 9.00 73.00 6HX 100.00 21.00 5 10.75 DIN 374 E = 1.5-2xTP HSS-E-PM T100-KM106DB-M12X150 ● MF 12x1.5 1.50 12.00 9.00 73.00 6HX 100.00 21.00 5 10.50 DIN 374 E = 1.5-2xTP HSS-E-PM T100-KM108DB-M12X125 ● MF 12x1.25 1.25 12.00 9.00 73.00 6HX 100.00 21.00 5 10.75 DIN 374 C = 2-3xTP HSS-E-PM T100-KM108DB-M12X150 ● MF 12x1.5 1.50 12.00 9.00 73.00 6HX 100.00 21.00 5 10.50 DIN 374 C = 2-3xTP HSS-E-PM T100-KM100DB-M14X150 ● MF 14x1.5 1.50 14.00 11.00 71.00 6HX 100.00 21.00 5 12.50 DIN 374 C = 2-3xTP HSS-E-PM T100-KM102DB-M14X150 ● MF 14x1.5 1.50 14.00 11.00 71.00 6HX 100.00 21.00 5 12.50 DIN 374 E = 1.5-2xTP HSS-E-PM T100-KM104DB-M14X150 ● MF 14x1.5 1.50 14.00 11.00 71.00 6HX 100.00 21.00 5 12.50 DIN 374 C = 2-3xTP HSS-E-PM T100-KM105DB-M14X150 ● MF 14x1.5 1.50 14.00 11.00 50.00 6HX 100.00 21.00 4 12.50 DIN 374 C = 2-3xTP HC T100-KM106DB-M14X150 ● MF 14x1.5 1.50 14.00 11.00 71.00 6HX 100.00 21.00 5 12.50 DIN 374 E = 1.5-2xTP HSS-E-PM T100-KM108DB-M14X150 ● MF 14x1.5 1.50 14.00 11.00 71.00 6HX 100.00 21.00 5 12.50 DIN 374 C = 2-3xTP HSS-E-PM T100-KM100DB-M16X150 ● MF 16x1.5 1.50 16.00 12.00 58.00 6HX 100.00 21.00 5 14.50 DIN 374 C = 2-3xTP HSS-E-PM ● = First choice ○ = Good choice 464
