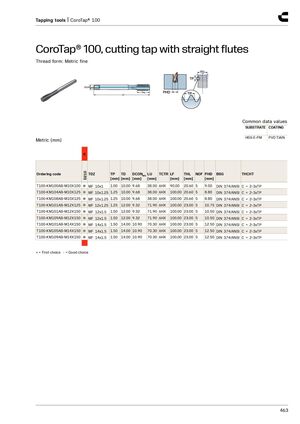

Tapping tools | CoroTap® 100 CoroTap® 100, cutting tap with straight flutes​​ Thread form: Metric fine Common data values SUBSTRATE COATING HSS-E-PM PVD TiAlN Metric (mm) K D210 Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] [mm] T100-KM100AB-M10X100 ● MF 10x1 1.00 10.00 9.68 38.00 6HX 90.00 20.60 5 9.00 DIN 374/ANSI C = 2-3xTP T100-KM104AB-M10X125 ● MF 10x1.25 1.25 10.00 9.68 38.00 6HX 100.00 20.60 5 8.80 DIN 374/ANSI C = 2-3xTP T100-KM108AB-M10X125 ● MF 10x1.25 1.25 10.00 9.68 38.00 6HX 100.00 20.60 5 8.80 DIN 374/ANSI C = 2-3xTP T100-KM101AB-M12X125 ● MF 12x1.25 1.25 12.00 9.32 71.90 6HX 100.00 23.00 5 10.75 DIN 374/ANSI C = 2-3xTP T100-KM101AB-M12X150 ● MF 12x1.5 1.50 12.00 9.32 71.90 6HX 100.00 23.00 5 10.50 DIN 374/ANSI C = 2-3xTP T100-KM109AB-M12X150 ● MF 12x1.5 1.50 12.00 9.32 71.90 6HX 100.00 23.00 5 10.50 DIN 374/ANSI C = 2-3xTP T100-KM101AB-M14X150 ● MF 14x1.5 1.50 14.00 10.90 70.30 6HX 100.00 23.00 5 12.50 DIN 374/ANSI C = 2-3xTP T100-KM105AB-M14X150 ● MF 14x1.5 1.50 14.00 10.90 70.30 6HX 100.00 23.00 5 12.50 DIN 374/ANSI C = 2-3xTP T100-KM109AB-M14X150 ● MF 14x1.5 1.50 14.00 10.90 70.30 6HX 100.00 23.00 5 12.50 DIN 374/ANSI C = 2-3xTP ● = First choice ○ = Good choice 463
