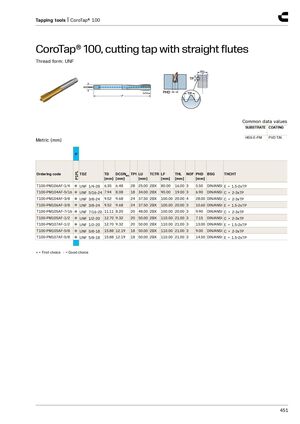

Tapping tools | CoroTap® 100 CoroTap® 100, cutting tap with straight flutes​​ Thread form: UNF THL Common data values SUBSTRATE COATING HSS-E-PM PVD TiN Metric (mm) P P1PL Ordering code TDZ TD DCONMS TPI LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] T100-PM106AF-1/4 ● UNF 1/4-28 6.35 6.48 28 25.00 2BX 80.00 16.00 3 5.50 DIN/ANSI E = 1.5-2xTP T100-PM104AF-5/16 ● UNF 5/16-24 7.94 8.08 18 34.00 2BX 90.00 19.00 3 6.90 DIN/ANSI C = 2-3xTP T100-PM104AF-3/8 ● UNF 3/8-24 9.52 9.68 24 37.50 2BX 100.00 20.00 4 28.00 DIN/ANSI C = 2-3xTP T100-PM106AF-3/8 ● UNF 3/8-24 9.52 9.68 24 37.50 2BX 100.00 20.00 3 10.60 DIN/ANSI E = 1.5-2xTP T100-PM105AF-7/16 ● UNF 7/16-20 11.11 8.20 20 48.00 2BX 100.00 20.00 3 9.90 DIN/ANSI C = 2-3xTP T100-PM105AF-1/2 ● UNF 1/2-20 12.70 9.32 20 50.00 2BX 110.00 21.00 3 7.15 DIN/ANSI C = 2-3xTP T100-PM107AF-1/2 ● UNF 1/2-20 12.70 9.32 20 50.00 2BX 110.00 21.00 3 13.00 DIN/ANSI E = 1.5-2xTP T100-PM105AF-5/8 ● UNF 5/8-18 15.88 12.19 18 50.00 2BX 110.00 21.00 3 9.00 DIN/ANSI C = 2-3xTP T100-PM107AF-5/8 ● UNF 5/8-18 15.88 12.19 18 50.00 2BX 110.00 21.00 3 14.50 DIN/ANSI E = 1.5-2xTP ● = First choice ○ = Good choice 451
