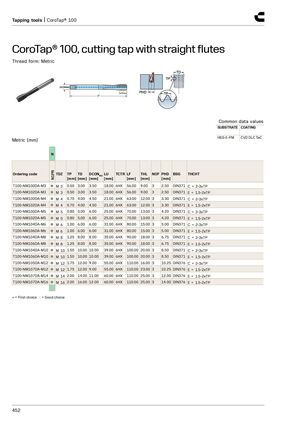

Tapping tools | CoroTap® 100 CoroTap® 100, cutting tap with straight flutes​​ Thread form: Metric THL Common data values SUBSTRATE COATING HSS-E-PM CVD DLC TaC Metric (mm) N N1PR Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] [mm] T100-NM100DA-M3 ● M 3 0.50 3.00 3.50 18.00 6HX 56.00 9.00 3 2.50 DIN371 C = 2-3xTP T100-NM102DA-M3 ● M 3 0.50 3.00 3.50 18.00 6HX 56.00 9.00 3 2.50 DIN371 E = 1.5-2xTP T100-NM100DA-M4 ● M 4 0.70 4.00 4.50 21.00 6HX 63.00 12.00 3 3.30 DIN371 C = 2-3xTP T100-NM102DA-M4 ● M 4 0.70 4.00 4.50 21.00 6HX 63.00 12.00 3 3.30 DIN371 E = 1.5-2xTP T100-NM100DA-M5 ● M 5 0.80 5.00 6.00 25.00 6HX 70.00 13.00 3 4.20 DIN371 C = 2-3xTP T100-NM102DA-M5 ● M 5 0.80 5.00 6.00 25.00 6HX 70.00 13.00 3 4.20 DIN371 E = 1.5-2xTP T100-NM104DA-M6 ● M 6 1.00 6.00 6.00 31.00 6HX 80.00 15.00 3 5.00 DIN371 C = 2-3xTP T100-NM106DA-M6 ● M 6 1.00 6.00 6.00 31.00 6HX 80.00 15.00 3 5.00 DIN371 E = 1.5-2xTP T100-NM104DA-M8 ● M 8 1.25 8.00 8.00 35.00 6HX 90.00 18.00 3 6.75 DIN371 C = 2-3xTP T100-NM106DA-M8 ● M 8 1.25 8.00 8.00 35.00 6HX 90.00 18.00 3 6.75 DIN371 E = 1.5-2xTP T100-NM104DA-M10 ● M 10 1.50 10.00 10.00 39.00 6HX 100.00 20.00 3 8.50 DIN371 C = 2-3xTP T100-NM106DA-M10 ● M 10 1.50 10.00 10.00 39.00 6HX 100.00 20.00 3 8.50 DIN371 E = 1.5-2xTP T100-NM105DA-M12 ● M 12 1.75 12.00 9.00 55.00 6HX 110.00 16.00 3 10.25 DIN376 C = 2-3xTP T100-NM107DA-M12 ● M 12 1.75 12.00 9.00 55.00 6HX 110.00 23.00 3 10.25 DIN376 E = 1.5-2xTP T100-NM107DA-M14 ● M 14 2.00 14.00 11.00 60.00 6HX 110.00 25.00 3 12.00 DIN376 E = 1.5-2xTP T100-NM107DA-M16 ● M 16 2.00 16.00 12.00 60.00 6HX 110.00 25.00 3 14.00 DIN376 E = 1.5-2xTP ● = First choice ○ = Good choice 452
