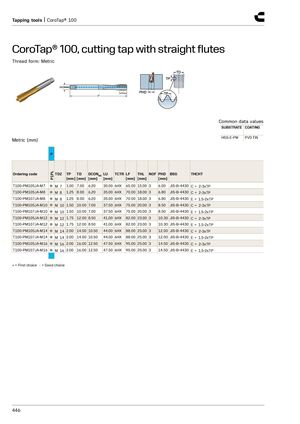

Tapping tools | CoroTap® 100 CoroTap® 100, cutting tap with straight flutes​​ Thread form: Metric THL Common data values SUBSTRATE COATING HSS-E-PM PVD TiN Metric (mm) P P1PL Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] [mm] T100-PM105JA-M7 ● M 7 1.00 7.00 6.20 30.00 6HX 65.00 15.00 3 6.00 JIS-B-4430 C = 2-3xTP T100-PM105JA-M8 ● M 8 1.25 8.00 6.20 35.00 6HX 70.00 18.00 3 6.80 JIS-B-4430 C = 2-3xTP T100-PM107JA-M8 ● M 8 1.25 8.00 6.20 35.00 6HX 70.00 18.00 3 6.80 JIS-B-4430 E = 1.5-2xTP T100-PM105JA-M10 ● M 10 1.50 10.00 7.00 37.50 6HX 75.00 20.00 3 8.50 JIS-B-4430 C = 2-3xTP T100-PM107JA-M10 ● M 10 1.50 10.00 7.00 37.50 6HX 75.00 20.00 3 8.50 JIS-B-4430 E = 1.5-2xTP T100-PM105JA-M12 ● M 12 1.75 12.00 8.50 41.00 6HX 82.00 23.00 3 10.30 JIS-B-4430 C = 2-3xTP T100-PM107JA-M12 ● M 12 1.75 12.00 8.50 41.00 6HX 82.00 23.00 3 10.30 JIS-B-4430 E = 1.5-2xTP T100-PM105JA-M14 ● M 14 2.00 14.00 10.50 44.00 6HX 88.00 25.00 3 12.00 JIS-B-4430 C = 2-3xTP T100-PM107JA-M14 ● M 14 2.00 14.00 10.50 44.00 6HX 88.00 25.00 3 12.00 JIS-B-4430 E = 1.5-2xTP T100-PM105JA-M16 ● M 16 2.00 16.00 12.50 47.50 6HX 95.00 25.00 3 14.50 JIS-B-4430 C = 2-3xTP T100-PM107JA-M16 ● M 16 2.00 16.00 12.50 47.50 6HX 95.00 25.00 3 14.50 JIS-B-4430 E = 1.5-2xTP ● = First choice ○ = Good choice 446
