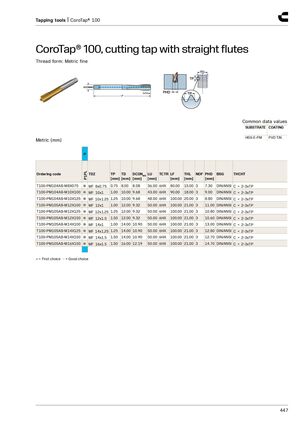

Tapping tools | CoroTap® 100 CoroTap® 100, cutting tap with straight flutes​​ Thread form: Metric fine THL Common data values SUBSTRATE COATING HSS-E-PM PVD TiN Metric (mm) P P1PL Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] [mm] T100-PM104AB-M8X075 ● MF 8x0.75 0.75 8.00 8.08 36.00 6HX 80.00 15.00 3 7.30 DIN/ANSI C = 2-3xTP T100-PM104AB-M10X100 ● MF 10x1 1.00 10.00 9.68 43.00 6HX 90.00 18.00 3 9.00 DIN/ANSI C = 2-3xTP T100-PM104AB-M10X125 ● MF 10x1.25 1.25 10.00 9.68 48.00 6HX 100.00 20.00 3 8.80 DIN/ANSI C = 2-3xTP T100-PM105AB-M12X100 ● MF 12x1 1.00 12.00 9.32 50.00 6HX 100.00 21.00 3 11.00 DIN/ANSI C = 2-3xTP T100-PM105AB-M12X125 ● MF 12x1.25 1.25 12.00 9.32 50.00 6HX 100.00 21.00 3 10.80 DIN/ANSI C = 2-3xTP T100-PM105AB-M12X150 ● MF 12x1.5 1.50 12.00 9.32 50.00 6HX 100.00 21.00 3 10.60 DIN/ANSI C = 2-3xTP T100-PM105AB-M14X100 ● MF 14x1 1.00 14.00 10.90 50.00 6HX 100.00 21.00 3 13.00 DIN/ANSI C = 2-3xTP T100-PM105AB-M14X125 ● MF 14x1.25 1.25 14.00 10.90 50.00 6HX 100.00 21.00 3 12.80 DIN/ANSI C = 2-3xTP T100-PM105AB-M14X150 ● MF 14x1.5 1.50 14.00 10.90 50.00 6HX 100.00 21.00 3 12.70 DIN/ANSI C = 2-3xTP T100-PM105AB-M16X150 ● MF 16x1.5 1.50 16.00 12.19 50.00 6HX 100.00 21.00 3 14.70 DIN/ANSI C = 2-3xTP ● = First choice ○ = Good choice 447
