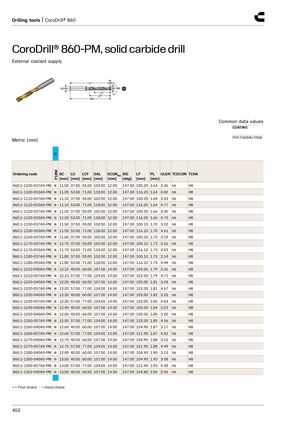

Drilling tools | CoroDrill® 860 CoroDrill® 860-PM, solid carbide drill​​ External coolant supply Common data values COATING PVD TiAlSiN+TiSiN Metric (mm) P P1BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-1100-037A0-PM ● 11.00 37.00 55.00 102.00 12.00 147.00 100.20 1.63 3.36 h6 H8 860.1-1100-053A0-PM ● 11.00 53.00 71.00 118.00 12.00 147.00 116.20 1.63 4.82 h6 H8 860.1-1110-037A0-PM ● 11.10 37.00 55.00 102.00 12.00 147.00 100.20 1.64 3.33 h6 H8 860.1-1110-053A0-PM ● 11.10 53.00 71.00 118.00 12.00 147.00 116.20 1.64 4.77 h6 H8 860.1-1120-037A0-PM ● 11.20 37.00 55.00 102.00 12.00 147.00 100.20 1.66 3.30 h6 H8 860.1-1120-053A0-PM ● 11.20 53.00 71.00 118.00 12.00 147.00 116.20 1.66 4.73 h6 H8 860.1-1150-037A0-PM ● 11.50 37.00 55.00 102.00 12.00 147.00 100.10 1.70 3.22 h6 H8 860.1-1150-053A0-PM ● 11.50 53.00 71.00 118.00 12.00 147.00 116.10 1.70 4.61 h6 H8 860.1-1160-037A0-PM ● 11.60 37.00 55.00 102.00 12.00 147.00 100.10 1.72 3.19 h6 H8 860.1-1170-037A0-PM ● 11.70 37.00 55.00 102.00 12.00 147.00 100.10 1.73 3.16 h6 H8 860.1-1170-053A0-PM ● 11.70 53.00 71.00 118.00 12.00 147.00 116.10 1.73 4.53 h6 H8 860.1-1180-037A0-PM ● 11.80 37.00 55.00 102.00 12.00 147.00 100.10 1.75 3.14 h6 H8 860.1-1180-053A0-PM ● 11.80 53.00 71.00 118.00 12.00 147.00 116.10 1.75 4.49 h6 H8 860.1-1210-040A0-PM ● 12.10 40.00 60.00 107.00 14.00 147.00 105.00 1.79 3.31 h6 H8 860.1-1210-057A0-PM ● 12.10 57.00 77.00 124.00 14.00 147.00 122.00 1.79 4.71 h6 H8 860.1-1220-040A0-PM ● 12.20 40.00 60.00 107.00 14.00 147.00 105.00 1.81 3.28 h6 H8 860.1-1220-057A0-PM ● 12.20 57.00 77.00 124.00 14.00 147.00 122.00 1.81 4.67 h6 H8 860.1-1230-040A0-PM ● 12.30 40.00 60.00 107.00 14.00 147.00 105.00 1.82 3.25 h6 H8 860.1-1230-057A0-PM ● 12.30 57.00 77.00 124.00 14.00 147.00 122.00 1.82 4.63 h6 H8 860.1-1240-040A0-PM ● 12.40 40.00 60.00 107.00 14.00 147.00 105.00 1.84 3.23 h6 H8 860.1-1250-040A0-PM ● 12.50 40.00 60.00 107.00 14.00 147.00 105.00 1.85 3.20 h6 H8 860.1-1250-057A0-PM ● 12.50 57.00 77.00 124.00 14.00 147.00 122.00 1.85 4.56 h6 H8 860.1-1260-040A0-PM ● 12.60 40.00 60.00 107.00 14.00 147.00 104.90 1.87 3.17 h6 H8 860.1-1260-057A0-PM ● 12.60 57.00 77.00 124.00 14.00 147.00 121.90 1.87 4.52 h6 H8 860.1-1270-040A0-PM ● 12.70 40.00 60.00 107.00 14.00 147.00 104.90 1.88 3.15 h6 H8 860.1-1270-057A0-PM ● 12.70 57.00 77.00 124.00 14.00 147.00 121.90 1.88 4.49 h6 H8 860.1-1280-040A0-PM ● 12.80 40.00 60.00 107.00 14.00 147.00 104.90 1.90 3.13 h6 H8 860.1-1300-040A0-PM ● 13.00 40.00 60.00 107.00 14.00 147.00 104.90 1.93 3.08 h6 H8 860.1-1300-057A0-PM ● 13.00 57.00 77.00 124.00 14.00 147.00 121.90 1.93 4.38 h6 H8 860.1-1350-040A0-PM ● 13.50 40.00 60.00 107.00 14.00 147.00 104.80 2.00 2.96 h6 H8 ● = First choice ○ = Good choice 402
