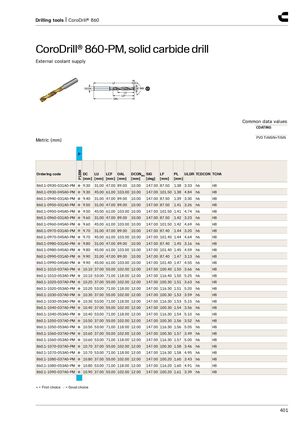

Drilling tools | CoroDrill® 860 CoroDrill® 860-PM, solid carbide drill External coolant supply Common data values COATING PVD TiAlSiN+TiSiN Metric (mm) P P1BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-0930-031A0-PM ● 9.30 31.00 47.00 89.00 10.00 147.00 87.50 1.38 3.33 h6 H8 860.1-0930-045A0-PM ● 9.30 45.00 61.00 103.00 10.00 147.00 101.50 1.38 4.84 h6 H8 860.1-0940-031A0-PM ● 9.40 31.00 47.00 89.00 10.00 147.00 87.50 1.39 3.30 h6 H8 860.1-0950-031A0-PM ● 9.50 31.00 47.00 89.00 10.00 147.00 87.50 1.41 3.26 h6 H8 860.1-0950-045A0-PM ● 9.50 45.00 61.00 103.00 10.00 147.00 101.50 1.41 4.74 h6 H8 860.1-0960-031A0-PM ● 9.60 31.00 47.00 89.00 10.00 147.00 87.50 1.42 3.23 h6 H8 860.1-0960-045A0-PM ● 9.60 45.00 61.00 103.00 10.00 147.00 101.50 1.42 4.69 h6 H8 860.1-0970-031A0-PM ● 9.70 31.00 47.00 89.00 10.00 147.00 87.40 1.44 3.20 h6 H8 860.1-0970-045A0-PM ● 9.70 45.00 61.00 103.00 10.00 147.00 101.40 1.44 4.64 h6 H8 860.1-0980-031A0-PM ● 9.80 31.00 47.00 89.00 10.00 147.00 87.40 1.45 3.16 h6 H8 860.1-0980-045A0-PM ● 9.80 45.00 61.00 103.00 10.00 147.00 101.40 1.45 4.59 h6 H8 860.1-0990-031A0-PM ● 9.90 31.00 47.00 89.00 10.00 147.00 87.40 1.47 3.13 h6 H8 860.1-0990-045A0-PM ● 9.90 45.00 61.00 103.00 10.00 147.00 101.40 1.47 4.55 h6 H8 860.1-1010-037A0-PM ● 10.10 37.00 55.00 102.00 12.00 147.00 100.40 1.50 3.66 h6 H8 860.1-1010-053A0-PM ● 10.10 53.00 71.00 118.00 12.00 147.00 116.40 1.50 5.25 h6 H8 860.1-1020-037A0-PM ● 10.20 37.00 55.00 102.00 12.00 147.00 100.30 1.51 3.63 h6 H8 860.1-1020-053A0-PM ● 10.20 53.00 71.00 118.00 12.00 147.00 116.30 1.51 5.20 h6 H8 860.1-1030-037A0-PM ● 10.30 37.00 55.00 102.00 12.00 147.00 100.30 1.53 3.59 h6 H8 860.1-1030-053A0-PM ● 10.30 53.00 71.00 118.00 12.00 147.00 116.30 1.53 5.15 h6 H8 860.1-1040-037A0-PM ● 10.40 37.00 55.00 102.00 12.00 147.00 100.30 1.54 3.56 h6 H8 860.1-1040-053A0-PM ● 10.40 53.00 71.00 118.00 12.00 147.00 116.30 1.54 5.10 h6 H8 860.1-1050-037A0-PM ● 10.50 37.00 55.00 102.00 12.00 147.00 100.30 1.56 3.52 h6 H8 860.1-1050-053A0-PM ● 10.50 53.00 71.00 118.00 12.00 147.00 116.30 1.56 5.05 h6 H8 860.1-1060-037A0-PM ● 10.60 37.00 55.00 102.00 12.00 147.00 100.30 1.57 3.49 h6 H8 860.1-1060-053A0-PM ● 10.60 53.00 71.00 118.00 12.00 147.00 116.30 1.57 5.00 h6 H8 860.1-1070-037A0-PM ● 10.70 37.00 55.00 102.00 12.00 147.00 100.30 1.58 3.46 h6 H8 860.1-1070-053A0-PM ● 10.70 53.00 71.00 118.00 12.00 147.00 116.30 1.58 4.95 h6 H8 860.1-1080-037A0-PM ● 10.80 37.00 55.00 102.00 12.00 147.00 100.20 1.60 3.43 h6 H8 860.1-1080-053A0-PM ● 10.80 53.00 71.00 118.00 12.00 147.00 116.20 1.60 4.91 h6 H8 860.1-1090-037A0-PM ● 10.90 37.00 55.00 102.00 12.00 147.00 100.20 1.61 3.39 h6 H8 ● = First choice ○ = Good choice 401
