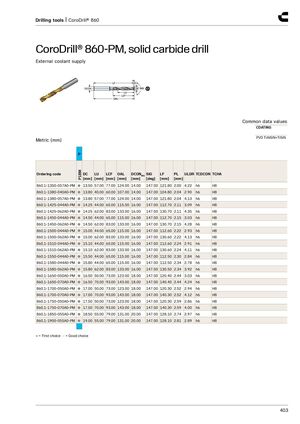

Drilling tools | CoroDrill® 860 CoroDrill® 860-PM, solid carbide drill​​ External coolant supply Common data values COATING PVD TiAlSiN+TiSiN Metric (mm) P P1BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-1350-057A0-PM ● 13.50 57.00 77.00 124.00 14.00 147.00 121.80 2.00 4.22 h6 H8 860.1-1380-040A0-PM ● 13.80 40.00 60.00 107.00 14.00 147.00 104.80 2.04 2.90 h6 H8 860.1-1380-057A0-PM ● 13.80 57.00 77.00 124.00 14.00 147.00 121.80 2.04 4.13 h6 H8 860.1-1425-044A0-PM ● 14.25 44.00 65.00 115.00 16.00 147.00 112.70 2.11 3.09 h6 H8 860.1-1425-062A0-PM ● 14.25 62.00 83.00 133.00 16.00 147.00 130.70 2.11 4.35 h6 H8 860.1-1450-044A0-PM ● 14.50 44.00 65.00 115.00 16.00 147.00 112.70 2.15 3.03 h6 H8 860.1-1450-062A0-PM ● 14.50 62.00 83.00 133.00 16.00 147.00 130.70 2.15 4.28 h6 H8 860.1-1500-044A0-PM ● 15.00 44.00 65.00 115.00 16.00 147.00 112.60 2.22 2.93 h6 H8 860.1-1500-062A0-PM ● 15.00 62.00 83.00 133.00 16.00 147.00 130.60 2.22 4.13 h6 H8 860.1-1510-044A0-PM ● 15.10 44.00 65.00 115.00 16.00 147.00 112.60 2.24 2.91 h6 H8 860.1-1510-062A0-PM ● 15.10 62.00 83.00 133.00 16.00 147.00 130.60 2.24 4.11 h6 H8 860.1-1550-044A0-PM ● 15.50 44.00 65.00 115.00 16.00 147.00 112.50 2.30 2.84 h6 H8 860.1-1580-044A0-PM ● 15.80 44.00 65.00 115.00 16.00 147.00 112.50 2.34 2.78 h6 H8 860.1-1580-062A0-PM ● 15.80 62.00 83.00 133.00 16.00 147.00 130.50 2.34 3.92 h6 H8 860.1-1650-050A0-PM ● 16.50 50.00 73.00 123.00 18.00 147.00 120.40 2.44 3.03 h6 H8 860.1-1650-070A0-PM ● 16.50 70.00 93.00 143.00 18.00 147.00 140.40 2.44 4.24 h6 H8 860.1-1700-050A0-PM ● 17.00 50.00 73.00 123.00 18.00 147.00 120.30 2.52 2.94 h6 H8 860.1-1700-070A0-PM ● 17.00 70.00 93.00 143.00 18.00 147.00 140.30 2.52 4.12 h6 H8 860.1-1750-050A0-PM ● 17.50 50.00 73.00 123.00 18.00 147.00 120.30 2.59 2.86 h6 H8 860.1-1750-070A0-PM ● 17.50 70.00 93.00 143.00 18.00 147.00 140.30 2.59 4.00 h6 H8 860.1-1850-055A0-PM ● 18.50 55.00 79.00 131.00 20.00 147.00 128.10 2.74 2.97 h6 H8 860.1-1900-055A0-PM ● 19.00 55.00 79.00 131.00 20.00 147.00 128.10 2.81 2.89 h6 H8 ● = First choice ○ = Good choice 403
