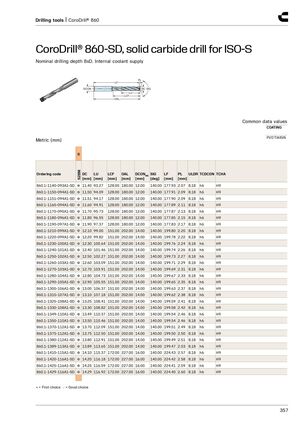

Drilling tools | CoroDrill® 860 CoroDrill® 860-SD, solid carbide drill for ISO-S​​ Nominal drilling depth 8xD. Internal coolant supply PL LF DCON DC SIG LU LCF OAL Common data values COATING PVD TiAlSiN Metric (mm) S S2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-1140-093A1-SD ● 11.40 93.27 128.00 180.00 12.00 140.00 177.93 2.07 8.18 h6 H9 860.1-1150-094A1-SD ● 11.50 94.09 128.00 180.00 12.00 140.00 177.91 2.09 8.18 h6 H9 860.1-1151-094A1-SD ● 11.51 94.17 128.00 180.00 12.00 140.00 177.90 2.09 8.18 h6 H9 860.1-1160-094A1-SD ● 11.60 94.91 128.00 180.00 12.00 140.00 177.89 2.11 8.18 h6 H9 860.1-1170-095A1-SD ● 11.70 95.73 128.00 180.00 12.00 140.00 177.87 2.13 8.18 h6 H9 860.1-1180-096A1-SD ● 11.80 96.55 128.00 180.00 12.00 140.00 177.85 2.15 8.18 h6 H9 860.1-1190-097A1-SD ● 11.90 97.37 128.00 180.00 12.00 140.00 177.83 2.17 8.18 h6 H9 860.1-1210-099A1-SD ● 12.10 99.00 151.00 202.00 14.00 140.00 199.80 2.20 8.18 h6 H9 860.1-1220-099A1-SD ● 12.20 99.82 151.00 202.00 14.00 140.00 199.78 2.22 8.18 h6 H9 860.1-1230-100A1-SD ● 12.30 100.64 151.00 202.00 14.00 140.00 199.76 2.24 8.18 h6 H9 860.1-1240-101A1-SD ● 12.40 101.46 151.00 202.00 14.00 140.00 199.74 2.26 8.18 h6 H9 860.1-1250-102A1-SD ● 12.50 102.27 151.00 202.00 14.00 140.00 199.73 2.27 8.18 h6 H9 860.1-1260-103A1-SD ● 12.60 103.09 151.00 202.00 14.00 140.00 199.71 2.29 8.18 h6 H9 860.1-1270-103A1-SD ● 12.70 103.91 151.00 202.00 14.00 140.00 199.69 2.31 8.18 h6 H9 860.1-1280-104A1-SD ● 12.80 104.73 151.00 202.00 14.00 140.00 199.67 2.33 8.18 h6 H9 860.1-1290-105A1-SD ● 12.90 105.55 151.00 202.00 14.00 140.00 199.65 2.35 8.18 h6 H9 860.1-1300-106A1-SD ● 13.00 106.37 151.00 202.00 14.00 140.00 199.63 2.37 8.18 h6 H9 860.1-1310-107A1-SD ● 13.10 107.18 151.00 202.00 14.00 140.00 199.62 2.38 8.18 h6 H9 860.1-1325-108A1-SD ● 13.25 108.41 151.00 202.00 14.00 140.00 199.59 2.41 8.18 h6 H9 860.1-1330-108A1-SD ● 13.30 108.82 151.00 202.00 14.00 140.00 199.58 2.42 8.18 h6 H9 860.1-1349-110A1-SD ● 13.49 110.37 151.00 202.00 14.00 140.00 199.54 2.46 8.18 h6 H9 860.1-1350-110A1-SD ● 13.50 110.46 151.00 202.00 14.00 140.00 199.54 2.46 8.18 h6 H9 860.1-1370-112A1-SD ● 13.70 112.09 151.00 202.00 14.00 140.00 199.51 2.49 8.18 h6 H9 860.1-1375-112A1-SD ● 13.75 112.50 151.00 202.00 14.00 140.00 199.50 2.50 8.18 h6 H9 860.1-1380-112A1-SD ● 13.80 112.91 151.00 202.00 14.00 140.00 199.49 2.51 8.18 h6 H9 860.1-1389-113A1-SD ● 13.89 113.65 151.00 202.00 14.00 140.00 199.47 2.53 8.18 h6 H9 860.1-1410-115A1-SD ● 14.10 115.37 172.00 227.00 16.00 140.00 224.43 2.57 8.18 h6 H9 860.1-1420-116A1-SD ● 14.20 116.18 172.00 227.00 16.00 140.00 224.42 2.58 8.18 h6 H9 860.1-1425-116A1-SD ● 14.25 116.59 172.00 227.00 16.00 140.00 224.41 2.59 8.18 h6 H9 860.1-1429-116A1-SD ● 14.29 116.92 172.00 227.00 16.00 140.00 224.40 2.60 8.18 h6 H9 ● = First choice ○ = Good choice 357
