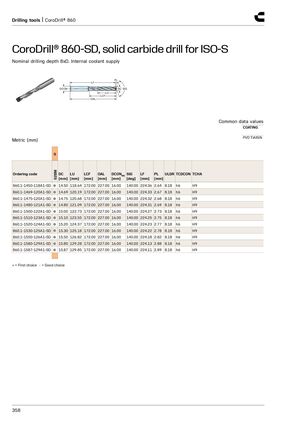

Drilling tools | CoroDrill® 860 CoroDrill® 860-SD, solid carbide drill for ISO-S​​ Nominal drilling depth 8xD. Internal coolant supply PL LF DCON DC SIG LU LCF OAL Common data values COATING PVD TiAlSiN Metric (mm) S S2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-1450-118A1-SD ● 14.50 118.64 172.00 227.00 16.00 140.00 224.36 2.64 8.18 h6 H9 860.1-1469-120A1-SD ● 14.69 120.19 172.00 227.00 16.00 140.00 224.33 2.67 8.18 h6 H9 860.1-1475-120A1-SD ● 14.75 120.68 172.00 227.00 16.00 140.00 224.32 2.68 8.18 h6 H9 860.1-1480-121A1-SD ● 14.80 121.09 172.00 227.00 16.00 140.00 224.31 2.69 8.18 h6 H9 860.1-1500-122A1-SD ● 15.00 122.73 172.00 227.00 16.00 140.00 224.27 2.73 8.18 h6 H9 860.1-1510-123A1-SD ● 15.10 123.55 172.00 227.00 16.00 140.00 224.25 2.75 8.18 h6 H9 860.1-1520-124A1-SD ● 15.20 124.37 172.00 227.00 16.00 140.00 224.23 2.77 8.18 h6 H9 860.1-1530-125A1-SD ● 15.30 125.18 172.00 227.00 16.00 140.00 224.22 2.78 8.18 h6 H9 860.1-1550-126A1-SD ● 15.50 126.82 172.00 227.00 16.00 140.00 224.18 2.82 8.18 h6 H9 860.1-1580-129A1-SD ● 15.80 129.28 172.00 227.00 16.00 140.00 224.13 2.88 8.18 h6 H9 860.1-1587-129A1-SD ● 15.87 129.85 172.00 227.00 16.00 140.00 224.11 2.89 8.18 h6 H9 ● = First choice ○ = Good choice 358
