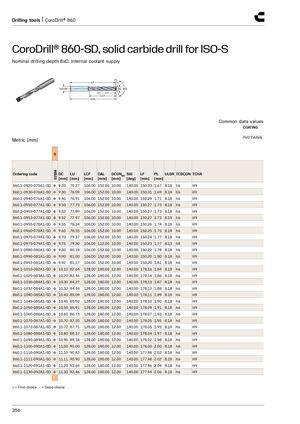

Drilling tools | CoroDrill® 860 CoroDrill® 860-SD, solid carbide drill for ISO-S​​ Nominal drilling depth 8xD. Internal coolant supply PL LF DCON DC SIG LU LCF OAL Common data values COATING PVD TiAlSiN Metric (mm) S S2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-0920-075A1-SD ● 9.20 75.27 106.00 152.00 10.00 140.00 150.33 1.67 8.18 h6 H9 860.1-0930-076A1-SD ● 9.30 76.09 106.00 152.00 10.00 140.00 150.31 1.69 8.18 h6 H9 860.1-0940-076A1-SD ● 9.40 76.91 106.00 152.00 10.00 140.00 150.29 1.71 8.18 h6 H9 860.1-0950-077A1-SD ● 9.50 77.73 106.00 152.00 10.00 140.00 150.27 1.73 8.18 h6 H9 860.1-0952-077A1-SD ● 9.52 77.89 106.00 152.00 10.00 140.00 150.27 1.73 8.18 h6 H9 860.1-0953-077A1-SD ● 9.52 77.97 106.00 152.00 10.00 140.00 150.27 1.73 8.19 h6 H9 860.1-0955-078A1-SD ● 9.55 78.14 106.00 152.00 10.00 140.00 150.26 1.74 8.18 h6 H9 860.1-0960-078A1-SD ● 9.60 78.55 106.00 152.00 10.00 140.00 150.25 1.75 8.18 h6 H9 860.1-0970-079A1-SD ● 9.70 79.37 106.00 152.00 10.00 140.00 150.24 1.77 8.18 h6 H9 860.1-0975-079A1-SD ● 9.75 79.30 106.00 112.00 10.00 140.00 150.23 1.77 8.13 h8 H9 860.1-0980-080A1-SD ● 9.80 80.18 106.00 152.00 10.00 140.00 150.22 1.78 8.18 h6 H9 860.1-0990-081A1-SD ● 9.90 81.00 106.00 152.00 10.00 140.00 150.20 1.80 8.18 h6 H9 860.1-0992-081A1-SD ● 9.92 81.17 106.00 152.00 10.00 140.00 150.20 1.81 8.18 h6 H9 860.1-1010-082A1-SD ● 10.10 82.64 128.00 180.00 12.00 140.00 178.16 1.84 8.18 h6 H9 860.1-1020-083A1-SD ● 10.20 83.46 128.00 180.00 12.00 140.00 178.14 1.86 8.18 h6 H9 860.1-1030-084A1-SD ● 10.30 84.27 128.00 180.00 12.00 140.00 178.13 1.87 8.18 h6 H9 860.1-1032-084A1-SD ● 10.32 84.44 128.00 180.00 12.00 140.00 178.12 1.88 8.18 h6 H9 860.1-1040-085A1-SD ● 10.40 85.09 128.00 180.00 12.00 140.00 178.11 1.89 8.18 h6 H9 860.1-1045-085A1-SD ● 10.45 85.50 128.00 180.00 12.00 140.00 178.10 1.90 8.18 h6 H9 860.1-1050-085A1-SD ● 10.50 85.91 128.00 180.00 12.00 140.00 178.09 1.91 8.18 h6 H9 860.1-1060-086A1-SD ● 10.60 86.73 128.00 180.00 12.00 140.00 178.07 1.93 8.18 h6 H9 860.1-1070-087A1-SD ● 10.70 87.55 128.00 180.00 12.00 140.00 178.05 1.95 8.18 h6 H9 860.1-1072-087A1-SD ● 10.72 87.71 128.00 180.00 12.00 140.00 178.05 1.95 8.18 h6 H9 860.1-1080-088A1-SD ● 10.80 88.37 128.00 180.00 12.00 140.00 178.04 1.97 8.18 h6 H9 860.1-1090-089A1-SD ● 10.90 89.18 128.00 180.00 12.00 140.00 178.02 1.98 8.18 h6 H9 860.1-1100-090A1-SD ● 11.00 90.00 128.00 180.00 12.00 140.00 178.00 2.00 8.18 h6 H9 860.1-1110-090A1-SD ● 11.10 90.82 128.00 180.00 12.00 140.00 177.98 2.02 8.18 h6 H9 860.1-1111-090A1-SD ● 11.11 90.90 128.00 180.00 12.00 140.00 177.98 2.02 8.18 h6 H9 860.1-1120-091A1-SD ● 11.20 91.64 128.00 180.00 12.00 140.00 177.96 2.04 8.18 h6 H9 860.1-1130-092A1-SD ● 11.30 92.46 128.00 180.00 12.00 140.00 177.94 2.06 8.18 h6 H9 ● = First choice ○ = Good choice 356
