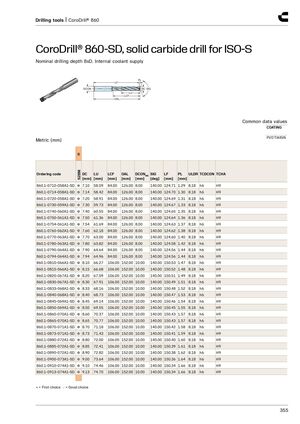

Drilling tools | CoroDrill® 860 CoroDrill® 860-SD, solid carbide drill for ISO-S​​ Nominal drilling depth 8xD. Internal coolant supply PL LF DCON DC SIG LU LCF OAL Common data values COATING PVD TiAlSiN Metric (mm) S S2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-0710-058A1-SD ● 7.10 58.09 84.00 126.00 8.00 140.00 124.71 1.29 8.18 h6 H9 860.1-0714-058A1-SD ● 7.14 58.42 84.00 126.00 8.00 140.00 124.70 1.30 8.18 h6 H9 860.1-0720-058A1-SD ● 7.20 58.91 84.00 126.00 8.00 140.00 124.69 1.31 8.18 h6 H9 860.1-0730-059A1-SD ● 7.30 59.73 84.00 126.00 8.00 140.00 124.67 1.33 8.18 h6 H9 860.1-0740-060A1-SD ● 7.40 60.55 84.00 126.00 8.00 140.00 124.65 1.35 8.18 h6 H9 860.1-0750-061A1-SD ● 7.50 61.36 84.00 126.00 8.00 140.00 124.64 1.36 8.18 h6 H9 860.1-0754-061A1-SD ● 7.54 61.69 84.00 126.00 8.00 140.00 124.63 1.37 8.18 h6 H9 860.1-0760-062A1-SD ● 7.60 62.18 84.00 126.00 8.00 140.00 124.62 1.38 8.18 h6 H9 860.1-0770-063A1-SD ● 7.70 63.00 84.00 126.00 8.00 140.00 124.60 1.40 8.18 h6 H9 860.1-0780-063A1-SD ● 7.80 63.82 84.00 126.00 8.00 140.00 124.58 1.42 8.18 h6 H9 860.1-0790-064A1-SD ● 7.90 64.64 84.00 126.00 8.00 140.00 124.56 1.44 8.18 h6 H9 860.1-0794-064A1-SD ● 7.94 64.96 84.00 126.00 8.00 140.00 124.56 1.44 8.18 h6 H9 860.1-0810-066A1-SD ● 8.10 66.27 106.00 152.00 10.00 140.00 150.53 1.47 8.18 h6 H9 860.1-0815-066A1-SD ● 8.15 66.68 106.00 152.00 10.00 140.00 150.52 1.48 8.18 h6 H9 860.1-0820-067A1-SD ● 8.20 67.09 106.00 152.00 10.00 140.00 150.51 1.49 8.18 h6 H9 860.1-0830-067A1-SD ● 8.30 67.91 106.00 152.00 10.00 140.00 150.49 1.51 8.18 h6 H9 860.1-0833-068A1-SD ● 8.33 68.16 106.00 152.00 10.00 140.00 150.48 1.52 8.18 h6 H9 860.1-0840-068A1-SD ● 8.40 68.73 106.00 152.00 10.00 140.00 150.47 1.53 8.18 h6 H9 860.1-0845-069A1-SD ● 8.45 69.14 106.00 152.00 10.00 140.00 150.46 1.54 8.18 h6 H9 860.1-0850-069A1-SD ● 8.50 69.55 106.00 152.00 10.00 140.00 150.45 1.55 8.18 h6 H9 860.1-0860-070A1-SD ● 8.60 70.37 106.00 152.00 10.00 140.00 150.43 1.57 8.18 h6 H9 860.1-0865-070A1-SD ● 8.65 70.77 106.00 152.00 10.00 140.00 150.43 1.57 8.18 h6 H9 860.1-0870-071A1-SD ● 8.70 71.18 106.00 152.00 10.00 140.00 150.42 1.58 8.18 h6 H9 860.1-0873-071A1-SD ● 8.73 71.43 106.00 152.00 10.00 140.00 150.41 1.59 8.18 h6 H9 860.1-0880-072A1-SD ● 8.80 72.00 106.00 152.00 10.00 140.00 150.40 1.60 8.18 h6 H9 860.1-0885-072A1-SD ● 8.85 72.41 106.00 152.00 10.00 140.00 150.39 1.61 8.18 h6 H9 860.1-0890-072A1-SD ● 8.90 72.82 106.00 152.00 10.00 140.00 150.38 1.62 8.18 h6 H9 860.1-0900-073A1-SD ● 9.00 73.64 106.00 152.00 10.00 140.00 150.36 1.64 8.18 h6 H9 860.1-0910-074A1-SD ● 9.10 74.46 106.00 152.00 10.00 140.00 150.34 1.66 8.18 h6 H9 860.1-0913-074A1-SD ● 9.13 74.70 106.00 152.00 10.00 140.00 150.34 1.66 8.18 h6 H9 ● = First choice ○ = Good choice 355
