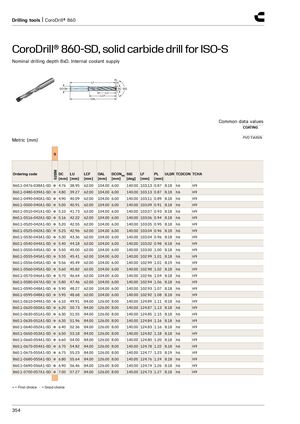

Drilling tools | CoroDrill® 860 CoroDrill® 860-SD, solid carbide drill for ISO-S​​ Nominal drilling depth 8xD. Internal coolant supply PL LF DCON DC SIG LU LCF OAL Common data values COATING PVD TiAlSiN Metric (mm) S S2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-0476-038A1-SD ● 4.76 38.95 62.00 104.00 6.00 140.00 103.13 0.87 8.18 h6 H9 860.1-0480-039A1-SD ● 4.80 39.27 62.00 104.00 6.00 140.00 103.13 0.87 8.18 h6 H9 860.1-0490-040A1-SD ● 4.90 40.09 62.00 104.00 6.00 140.00 103.11 0.89 8.18 h6 H9 860.1-0500-040A1-SD ● 5.00 40.91 62.00 104.00 6.00 140.00 103.09 0.91 8.18 h6 H9 860.1-0510-041A1-SD ● 5.10 41.73 62.00 104.00 6.00 140.00 103.07 0.93 8.18 h6 H9 860.1-0516-042A1-SD ● 5.16 42.22 62.00 104.00 6.00 140.00 103.06 0.94 8.18 h6 H9 860.1-0520-042A1-SD ● 5.20 42.55 62.00 104.00 6.00 140.00 103.05 0.95 8.18 h6 H9 860.1-0525-042A1-SD ● 5.25 42.96 62.00 104.00 6.00 140.00 103.04 0.96 8.18 h6 H9 860.1-0530-043A1-SD ● 5.30 43.36 62.00 104.00 6.00 140.00 103.04 0.96 8.18 h6 H9 860.1-0540-044A1-SD ● 5.40 44.18 62.00 104.00 6.00 140.00 103.02 0.98 8.18 h6 H9 860.1-0550-045A1-SD ● 5.50 45.00 62.00 104.00 6.00 140.00 103.00 1.00 8.18 h6 H9 860.1-0555-045A1-SD ● 5.55 45.41 62.00 104.00 6.00 140.00 102.99 1.01 8.18 h6 H9 860.1-0556-045A1-SD ● 5.56 45.49 62.00 104.00 6.00 140.00 102.99 1.01 8.19 h6 H9 860.1-0560-045A1-SD ● 5.60 45.82 62.00 104.00 6.00 140.00 102.98 1.02 8.18 h6 H9 860.1-0570-046A1-SD ● 5.70 46.64 62.00 104.00 6.00 140.00 102.96 1.04 8.18 h6 H9 860.1-0580-047A1-SD ● 5.80 47.46 62.00 104.00 6.00 140.00 102.94 1.06 8.18 h6 H9 860.1-0590-048A1-SD ● 5.90 48.27 62.00 104.00 6.00 140.00 102.93 1.07 8.18 h6 H9 860.1-0595-048A1-SD ● 5.95 48.68 62.00 104.00 6.00 140.00 102.92 1.08 8.18 h6 H9 860.1-0610-049A1-SD ● 6.10 49.91 84.00 126.00 8.00 140.00 124.89 1.11 8.18 h6 H9 860.1-0620-050A1-SD ● 6.20 50.73 84.00 126.00 8.00 140.00 124.87 1.13 8.18 h6 H9 860.1-0630-051A1-SD ● 6.30 51.55 84.00 126.00 8.00 140.00 124.85 1.15 8.18 h6 H9 860.1-0635-051A1-SD ● 6.35 51.96 84.00 126.00 8.00 140.00 124.84 1.16 8.18 h6 H9 860.1-0640-052A1-SD ● 6.40 52.36 84.00 126.00 8.00 140.00 124.83 1.16 8.18 h6 H9 860.1-0650-053A1-SD ● 6.50 53.18 84.00 126.00 8.00 140.00 124.82 1.18 8.18 h6 H9 860.1-0660-054A1-SD ● 6.60 54.00 84.00 126.00 8.00 140.00 124.80 1.20 8.18 h6 H9 860.1-0670-054A1-SD ● 6.70 54.82 84.00 126.00 8.00 140.00 124.78 1.22 8.18 h6 H9 860.1-0675-055A1-SD ● 6.75 55.23 84.00 126.00 8.00 140.00 124.77 1.23 8.19 h6 H9 860.1-0680-055A1-SD ● 6.80 55.64 84.00 126.00 8.00 140.00 124.76 1.24 8.18 h6 H9 860.1-0690-056A1-SD ● 6.90 56.46 84.00 126.00 8.00 140.00 124.74 1.26 8.18 h6 H9 860.1-0700-057A1-SD ● 7.00 57.27 84.00 126.00 8.00 140.00 124.73 1.27 8.18 h6 H9 ● = First choice ○ = Good choice 354
