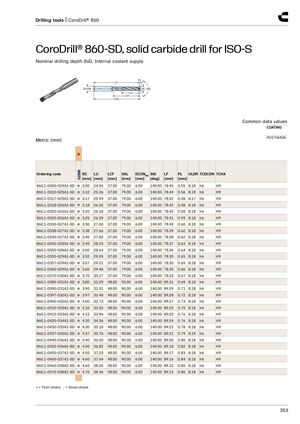

Drilling tools | CoroDrill® 860 CoroDrill® 860-SD, solid carbide drill for ISO-S Nominal drilling depth 8xD. Internal coolant supply PL LF DCON DC SIG LU LCF OAL Common data values COATING PVD TiAlSiN Metric (mm) S S2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-0300-024A1-SD ● 3.00 24.55 37.00 79.00 6.00 140.00 78.45 0.55 8.18 h6 H9 860.1-0310-025A1-SD ● 3.10 25.36 37.00 79.00 6.00 140.00 78.44 0.56 8.18 h6 H9 860.1-0317-025A1-SD ● 3.17 25.94 37.00 79.00 6.00 140.00 78.42 0.58 8.17 h6 H9 860.1-0318-026A1-SD ● 3.18 26.02 37.00 79.00 6.00 140.00 78.42 0.58 8.18 h6 H9 860.1-0320-026A1-SD ● 3.20 26.18 37.00 79.00 6.00 140.00 78.42 0.58 8.18 h6 H9 860.1-0325-026A1-SD ● 3.25 26.59 37.00 79.00 6.00 140.00 78.41 0.59 8.18 h6 H9 860.1-0330-027A1-SD ● 3.30 27.00 37.00 79.00 6.00 140.00 78.40 0.60 8.18 h6 H9 860.1-0338-027A1-SD ● 3.38 27.66 37.00 79.00 6.00 140.00 78.39 0.62 8.18 h6 H9 860.1-0340-027A1-SD ● 3.40 27.82 37.00 79.00 6.00 140.00 78.38 0.62 8.18 h6 H9 860.1-0345-028A1-SD ● 3.45 28.23 37.00 79.00 6.00 140.00 78.37 0.63 8.18 h6 H9 860.1-0350-028A1-SD ● 3.50 28.64 37.00 79.00 6.00 140.00 78.36 0.64 8.18 h6 H9 860.1-0355-029A1-SD ● 3.55 29.05 37.00 79.00 6.00 140.00 78.35 0.65 8.18 h6 H9 860.1-0357-029A1-SD ● 3.57 29.21 37.00 79.00 6.00 140.00 78.35 0.65 8.18 h6 H9 860.1-0360-029A1-SD ● 3.60 29.46 37.00 79.00 6.00 140.00 78.35 0.66 8.18 h6 H9 860.1-0370-030A1-SD ● 3.70 30.27 37.00 79.00 6.00 140.00 78.33 0.67 8.18 h6 H9 860.1-0380-031A1-SD ● 3.80 31.09 48.00 90.00 6.00 140.00 89.31 0.69 8.18 h6 H9 860.1-0390-031A1-SD ● 3.90 31.91 48.00 90.00 6.00 140.00 89.29 0.71 8.18 h6 H9 860.1-0397-032A1-SD ● 3.97 32.48 48.00 90.00 6.00 140.00 89.28 0.72 8.18 h6 H9 860.1-0400-032A1-SD ● 4.00 32.73 48.00 90.00 6.00 140.00 89.27 0.73 8.18 h6 H9 860.1-0410-033A1-SD ● 4.10 33.55 48.00 90.00 6.00 140.00 89.25 0.75 8.18 h6 H9 860.1-0415-033A1-SD ● 4.15 33.96 48.00 90.00 6.00 140.00 89.25 0.76 8.18 h6 H9 860.1-0420-034A1-SD ● 4.20 34.36 48.00 90.00 6.00 140.00 89.24 0.76 8.18 h6 H9 860.1-0430-035A1-SD ● 4.30 35.18 48.00 90.00 6.00 140.00 89.22 0.78 8.18 h6 H9 860.1-0437-035A1-SD ● 4.37 35.76 48.00 90.00 6.00 140.00 89.21 0.79 8.19 h6 H9 860.1-0440-036A1-SD ● 4.40 36.00 48.00 90.00 6.00 140.00 89.20 0.80 8.18 h6 H9 860.1-0450-036A1-SD ● 4.50 36.82 48.00 90.00 6.00 140.00 89.18 0.82 8.18 h6 H9 860.1-0455-037A1-SD ● 4.55 37.23 48.00 90.00 6.00 140.00 89.17 0.83 8.18 h6 H9 860.1-0460-037A1-SD ● 4.60 37.64 48.00 90.00 6.00 140.00 89.16 0.84 8.18 h6 H9 860.1-0465-038A1-SD ● 4.65 38.05 48.00 90.00 6.00 140.00 89.15 0.85 8.18 h6 H9 860.1-0470-038A1-SD ● 4.70 38.46 48.00 90.00 6.00 140.00 89.14 0.86 8.18 h6 H9 ● = First choice ○ = Good choice 353
