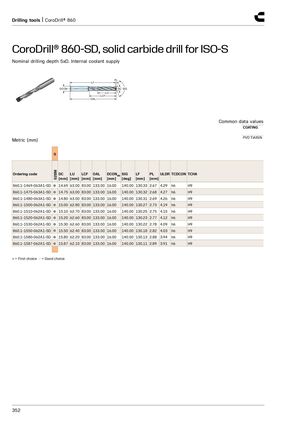

Drilling tools | CoroDrill® 860 CoroDrill® 860-SD, solid carbide drill for ISO-S​​ Nominal drilling depth 5xD. Internal coolant supply PL LF DCON DC SIG LU LCF OAL Common data values COATING PVD TiAlSiN Metric (mm) S S2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-1469-063A1-SD ● 14.69 63.00 83.00 133.00 16.00 140.00 130.33 2.67 4.29 h6 H9 860.1-1475-063A1-SD ● 14.75 63.00 83.00 133.00 16.00 140.00 130.32 2.68 4.27 h6 H9 860.1-1480-063A1-SD ● 14.80 63.00 83.00 133.00 16.00 140.00 130.31 2.69 4.26 h6 H9 860.1-1500-062A1-SD ● 15.00 62.80 83.00 133.00 16.00 140.00 130.27 2.73 4.19 h6 H9 860.1-1510-062A1-SD ● 15.10 62.70 83.00 133.00 16.00 140.00 130.25 2.75 4.15 h6 H9 860.1-1520-062A1-SD ● 15.20 62.60 83.00 133.00 16.00 140.00 130.23 2.77 4.12 h6 H9 860.1-1530-062A1-SD ● 15.30 62.60 83.00 133.00 16.00 140.00 130.22 2.78 4.09 h6 H9 860.1-1550-062A1-SD ● 15.50 62.40 83.00 133.00 16.00 140.00 130.18 2.82 4.03 h6 H9 860.1-1580-062A1-SD ● 15.80 62.20 83.00 133.00 16.00 140.00 130.13 2.88 3.94 h6 H9 860.1-1587-062A1-SD ● 15.87 62.10 83.00 133.00 16.00 140.00 130.11 2.89 3.91 h6 H9 ● = First choice ○ = Good choice 352
