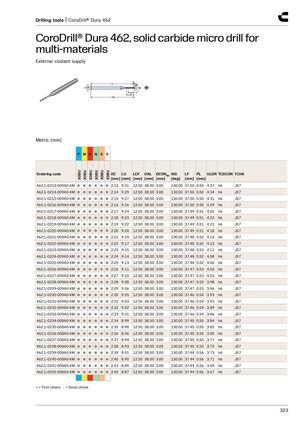

Drilling tools | CoroDrill® Dura 462 CoroDrill® Dura 462, solid carbide micro drill for multi-materials​​ External coolant supply Metric (mm) P M K N S O X0BU X0BU X0BU X0BU X0BU X0BU Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 462.1-0213-009A0-XM ● ● ● ● ● ● 2.13 9.31 12.50 38.00 3.00 130.00 37.50 0.50 4.37 h6 JS7 462.1-0214-009A0-XM ● ● ● ● ● ● 2.14 9.29 12.50 38.00 3.00 130.00 37.50 0.50 4.34 h6 JS7 462.1-0215-009A0-XM ● ● ● ● ● ● 2.15 9.27 12.50 38.00 3.00 130.00 37.50 0.50 4.31 h6 JS7 462.1-0216-009A0-XM ● ● ● ● ● ● 2.16 9.26 12.50 38.00 3.00 130.00 37.50 0.50 4.29 h6 JS7 462.1-0217-009A0-XM ● ● ● ● ● ● 2.17 9.24 12.50 38.00 3.00 130.00 37.49 0.51 4.26 h6 JS7 462.1-0218-009A0-XM ● ● ● ● ● ● 2.18 9.23 12.50 38.00 3.00 130.00 37.49 0.51 4.23 h6 JS7 462.1-0219-009A0-XM ● ● ● ● ● ● 2.19 9.22 12.50 38.00 3.00 130.00 37.49 0.51 4.21 h6 JS7 462.1-0220-009A0-XM ● ● ● ● ● ● 2.20 9.20 12.50 38.00 3.00 130.00 37.49 0.51 4.18 h6 JS7 462.1-0221-009A0-XM ● ● ● ● ● ● 2.21 9.19 12.50 38.00 3.00 130.00 37.48 0.52 4.16 h6 JS7 462.1-0222-009A0-XM ● ● ● ● ● ● 2.22 9.17 12.50 38.00 3.00 130.00 37.48 0.52 4.13 h6 JS7 462.1-0223-009A0-XM ● ● ● ● ● ● 2.23 9.15 12.50 38.00 3.00 130.00 37.48 0.52 4.11 h6 JS7 462.1-0224-009A0-XM ● ● ● ● ● ● 2.24 9.14 12.50 38.00 3.00 130.00 37.48 0.52 4.08 h6 JS7 462.1-0225-009A0-XM ● ● ● ● ● ● 2.25 9.13 12.50 38.00 3.00 130.00 37.48 0.52 4.06 h6 JS7 462.1-0226-009A0-XM ● ● ● ● ● ● 2.26 9.11 12.50 38.00 3.00 130.00 37.47 0.53 4.03 h6 JS7 462.1-0227-009A0-XM ● ● ● ● ● ● 2.27 9.10 12.50 38.00 3.00 130.00 37.47 0.53 4.01 h6 JS7 462.1-0228-009A0-XM ● ● ● ● ● ● 2.28 9.08 12.50 38.00 3.00 130.00 37.47 0.53 3.98 h6 JS7 462.1-0229-009A0-XM ● ● ● ● ● ● 2.29 9.06 12.50 38.00 3.00 130.00 37.47 0.53 3.96 h6 JS7 462.1-0230-009A0-XM ● ● ● ● ● ● 2.30 9.05 12.50 38.00 3.00 130.00 37.46 0.54 3.93 h6 JS7 462.1-0231-009A0-XM ● ● ● ● ● ● 2.31 9.03 12.50 38.00 3.00 130.00 37.46 0.54 3.91 h6 JS7 462.1-0232-009A0-XM ● ● ● ● ● ● 2.32 9.02 12.50 38.00 3.00 130.00 37.46 0.54 3.89 h6 JS7 462.1-0233-009A0-XM ● ● ● ● ● ● 2.33 9.01 12.50 38.00 3.00 130.00 37.46 0.54 3.86 h6 JS7 462.1-0234-008A0-XM ● ● ● ● ● ● 2.34 8.99 12.50 38.00 3.00 130.00 37.45 0.55 3.84 h6 JS7 462.1-0235-008A0-XM ● ● ● ● ● ● 2.35 8.98 12.50 38.00 3.00 130.00 37.45 0.55 3.82 h6 JS7 462.1-0236-008A0-XM ● ● ● ● ● ● 2.36 8.96 12.50 38.00 3.00 130.00 37.45 0.55 3.80 h6 JS7 462.1-0237-008A0-XM ● ● ● ● ● ● 2.37 8.94 12.50 38.00 3.00 130.00 37.45 0.55 3.77 h6 JS7 462.1-0238-008A0-XM ● ● ● ● ● ● 2.38 8.93 12.50 38.00 3.00 130.00 37.45 0.55 3.75 h6 JS7 462.1-0239-008A0-XM ● ● ● ● ● ● 2.39 8.91 12.50 38.00 3.00 130.00 37.44 0.56 3.73 h6 JS7 462.1-0240-008A0-XM ● ● ● ● ● ● 2.40 8.90 12.50 38.00 3.00 130.00 37.44 0.56 3.71 h6 JS7 462.1-0241-008A0-XM ● ● ● ● ● ● 2.41 8.89 12.50 38.00 3.00 130.00 37.44 0.56 3.69 h6 JS7 462.1-0242-008A0-XM ● ● ● ● ● ● 2.42 8.87 12.50 38.00 3.00 130.00 37.44 0.56 3.67 h6 JS7 ● = First choice ○ = Good choice 323
