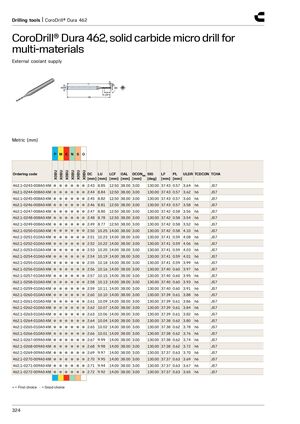

Drilling tools | CoroDrill® Dura 462 CoroDrill® Dura 462, solid carbide micro drill for multi-materials​​ External coolant supply Metric (mm) P M K N S O X0BU X0BU X0BU X0BU X0BU X0BU Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 462.1-0243-008A0-XM ● ● ● ● ● ● 2.43 8.85 12.50 38.00 3.00 130.00 37.43 0.57 3.64 h6 JS7 462.1-0244-008A0-XM ● ● ● ● ● ● 2.44 8.84 12.50 38.00 3.00 130.00 37.43 0.57 3.62 h6 JS7 462.1-0245-008A0-XM ● ● ● ● ● ● 2.45 8.82 12.50 38.00 3.00 130.00 37.43 0.57 3.60 h6 JS7 462.1-0246-008A0-XM ● ● ● ● ● ● 2.46 8.81 12.50 38.00 3.00 130.00 37.43 0.57 3.58 h6 JS7 462.1-0247-008A0-XM ● ● ● ● ● ● 2.47 8.80 12.50 38.00 3.00 130.00 37.42 0.58 3.56 h6 JS7 462.1-0248-008A0-XM ● ● ● ● ● ● 2.48 8.78 12.50 38.00 3.00 130.00 37.42 0.58 3.54 h6 JS7 462.1-0249-008A0-XM ● ● ● ● ● ● 2.49 8.77 12.50 38.00 3.00 130.00 37.42 0.58 3.52 h6 JS7 462.1-0250-010A0-XM ● ● ● ● ● ● 2.50 10.25 14.00 38.00 3.00 130.00 37.42 0.58 4.10 h6 JS7 462.1-0251-010A0-XM ● ● ● ● ● ● 2.51 10.23 14.00 38.00 3.00 130.00 37.41 0.59 4.08 h6 JS7 462.1-0252-010A0-XM ● ● ● ● ● ● 2.52 10.22 14.00 38.00 3.00 130.00 37.41 0.59 4.06 h6 JS7 462.1-0253-010A0-XM ● ● ● ● ● ● 2.53 10.20 14.00 38.00 3.00 130.00 37.41 0.59 4.03 h6 JS7 462.1-0254-010A0-XM ● ● ● ● ● ● 2.54 10.19 14.00 38.00 3.00 130.00 37.41 0.59 4.01 h6 JS7 462.1-0255-010A0-XM ● ● ● ● ● ● 2.55 10.18 14.00 38.00 3.00 130.00 37.41 0.59 3.99 h6 JS7 462.1-0256-010A0-XM ● ● ● ● ● ● 2.56 10.16 14.00 38.00 3.00 130.00 37.40 0.60 3.97 h6 JS7 462.1-0257-010A0-XM ● ● ● ● ● ● 2.57 10.15 14.00 38.00 3.00 130.00 37.40 0.60 3.95 h6 JS7 462.1-0258-010A0-XM ● ● ● ● ● ● 2.58 10.13 14.00 38.00 3.00 130.00 37.40 0.60 3.93 h6 JS7 462.1-0259-010A0-XM ● ● ● ● ● ● 2.59 10.11 14.00 38.00 3.00 130.00 37.40 0.60 3.91 h6 JS7 462.1-0260-010A0-XM ● ● ● ● ● ● 2.60 10.10 14.00 38.00 3.00 130.00 37.39 0.61 3.88 h6 JS7 462.1-0261-010A0-XM ● ● ● ● ● ● 2.61 10.09 14.00 38.00 3.00 130.00 37.39 0.61 3.86 h6 JS7 462.1-0262-010A0-XM ● ● ● ● ● ● 2.62 10.07 14.00 38.00 3.00 130.00 37.39 0.61 3.84 h6 JS7 462.1-0263-010A0-XM ● ● ● ● ● ● 2.63 10.06 14.00 38.00 3.00 130.00 37.39 0.61 3.82 h6 JS7 462.1-0264-010A0-XM ● ● ● ● ● ● 2.64 10.04 14.00 38.00 3.00 130.00 37.38 0.62 3.80 h6 JS7 462.1-0265-010A0-XM ● ● ● ● ● ● 2.65 10.02 14.00 38.00 3.00 130.00 37.38 0.62 3.78 h6 JS7 462.1-0266-010A0-XM ● ● ● ● ● ● 2.66 10.01 14.00 38.00 3.00 130.00 37.38 0.62 3.76 h6 JS7 462.1-0267-009A0-XM ● ● ● ● ● ● 2.67 9.99 14.00 38.00 3.00 130.00 37.38 0.62 3.74 h6 JS7 462.1-0268-009A0-XM ● ● ● ● ● ● 2.68 9.98 14.00 38.00 3.00 130.00 37.38 0.62 3.72 h6 JS7 462.1-0269-009A0-XM ● ● ● ● ● ● 2.69 9.97 14.00 38.00 3.00 130.00 37.37 0.63 3.70 h6 JS7 462.1-0270-009A0-XM ● ● ● ● ● ● 2.70 9.95 14.00 38.00 3.00 130.00 37.37 0.63 3.69 h6 JS7 462.1-0271-009A0-XM ● ● ● ● ● ● 2.71 9.94 14.00 38.00 3.00 130.00 37.37 0.63 3.67 h6 JS7 462.1-0272-009A0-XM ● ● ● ● ● ● 2.72 9.92 14.00 38.00 3.00 130.00 37.37 0.63 3.65 h6 JS7 ● = First choice ○ = Good choice 324
