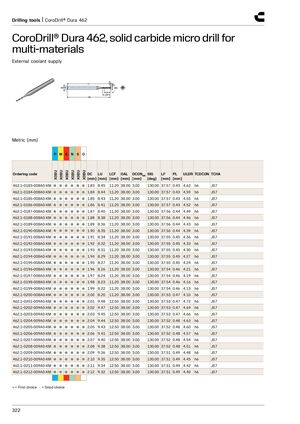

Drilling tools | CoroDrill® Dura 462 CoroDrill® Dura 462, solid carbide micro drill for multi-materials​​ External coolant supply Metric (mm) P M K N S O X0BU X0BU X0BU X0BU X0BU X0BU Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 462.1-0183-008A0-XM ● ● ● ● ● ● 1.83 8.45 11.20 38.00 3.00 130.00 37.57 0.43 4.62 h6 JS7 462.1-0184-008A0-XM ● ● ● ● ● ● 1.84 8.44 11.20 38.00 3.00 130.00 37.57 0.43 4.59 h6 JS7 462.1-0185-008A0-XM ● ● ● ● ● ● 1.85 8.43 11.20 38.00 3.00 130.00 37.57 0.43 4.55 h6 JS7 462.1-0186-008A0-XM ● ● ● ● ● ● 1.86 8.41 11.20 38.00 3.00 130.00 37.57 0.43 4.52 h6 JS7 462.1-0187-008A0-XM ● ● ● ● ● ● 1.87 8.40 11.20 38.00 3.00 130.00 37.56 0.44 4.49 h6 JS7 462.1-0188-008A0-XM ● ● ● ● ● ● 1.88 8.38 11.20 38.00 3.00 130.00 37.56 0.44 4.46 h6 JS7 462.1-0189-008A0-XM ● ● ● ● ● ● 1.89 8.36 11.20 38.00 3.00 130.00 37.56 0.44 4.43 h6 JS7 462.1-0190-008A0-XM ● ● ● ● ● ● 1.90 8.35 11.20 38.00 3.00 130.00 37.56 0.44 4.39 h6 JS7 462.1-0191-008A0-XM ● ● ● ● ● ● 1.91 8.34 11.20 38.00 3.00 130.00 37.55 0.45 4.36 h6 JS7 462.1-0192-008A0-XM ● ● ● ● ● ● 1.92 8.32 11.20 38.00 3.00 130.00 37.55 0.45 4.33 h6 JS7 462.1-0193-008A0-XM ● ● ● ● ● ● 1.93 8.31 11.20 38.00 3.00 130.00 37.55 0.45 4.30 h6 JS7 462.1-0194-008A0-XM ● ● ● ● ● ● 1.94 8.29 11.20 38.00 3.00 130.00 37.55 0.45 4.27 h6 JS7 462.1-0195-008A0-XM ● ● ● ● ● ● 1.95 8.27 11.20 38.00 3.00 130.00 37.55 0.45 4.24 h6 JS7 462.1-0196-008A0-XM ● ● ● ● ● ● 1.96 8.26 11.20 38.00 3.00 130.00 37.54 0.46 4.21 h6 JS7 462.1-0197-008A0-XM ● ● ● ● ● ● 1.97 8.24 11.20 38.00 3.00 130.00 37.54 0.46 4.19 h6 JS7 462.1-0198-008A0-XM ● ● ● ● ● ● 1.98 8.23 11.20 38.00 3.00 130.00 37.54 0.46 4.16 h6 JS7 462.1-0199-008A0-XM ● ● ● ● ● ● 1.99 8.22 11.20 38.00 3.00 130.00 37.54 0.46 4.13 h6 JS7 462.1-0200-008A0-XM ● ● ● ● ● ● 2.00 8.20 11.20 38.00 3.00 130.00 37.53 0.47 4.10 h6 JS7 462.1-0201-009A0-XM ● ● ● ● ● ● 2.01 9.48 12.50 38.00 3.00 130.00 37.53 0.47 4.72 h6 JS7 462.1-0202-009A0-XM ● ● ● ● ● ● 2.02 9.47 12.50 38.00 3.00 130.00 37.53 0.47 4.69 h6 JS7 462.1-0203-009A0-XM ● ● ● ● ● ● 2.03 9.45 12.50 38.00 3.00 130.00 37.53 0.47 4.66 h6 JS7 462.1-0204-009A0-XM ● ● ● ● ● ● 2.04 9.44 12.50 38.00 3.00 130.00 37.52 0.48 4.63 h6 JS7 462.1-0205-009A0-XM ● ● ● ● ● ● 2.05 9.43 12.50 38.00 3.00 130.00 37.52 0.48 4.60 h6 JS7 462.1-0206-009A0-XM ● ● ● ● ● ● 2.06 9.41 12.50 38.00 3.00 130.00 37.52 0.48 4.57 h6 JS7 462.1-0207-009A0-XM ● ● ● ● ● ● 2.07 9.40 12.50 38.00 3.00 130.00 37.52 0.48 4.54 h6 JS7 462.1-0208-009A0-XM ● ● ● ● ● ● 2.08 9.38 12.50 38.00 3.00 130.00 37.52 0.48 4.51 h6 JS7 462.1-0209-009A0-XM ● ● ● ● ● ● 2.09 9.36 12.50 38.00 3.00 130.00 37.51 0.49 4.48 h6 JS7 462.1-0210-009A0-XM ● ● ● ● ● ● 2.10 9.35 12.50 38.00 3.00 130.00 37.51 0.49 4.45 h6 JS7 462.1-0211-009A0-XM ● ● ● ● ● ● 2.11 9.34 12.50 38.00 3.00 130.00 37.51 0.49 4.42 h6 JS7 462.1-0212-009A0-XM ● ● ● ● ● ● 2.12 9.32 12.50 38.00 3.00 130.00 37.51 0.49 4.40 h6 JS7 ● = First choice ○ = Good choice 322
