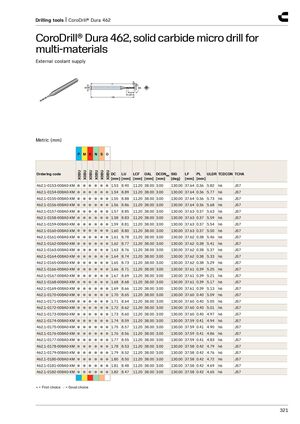

Drilling tools | CoroDrill® Dura 462 CoroDrill® Dura 462, solid carbide micro drill for multi-materials​​ External coolant supply Metric (mm) P M K N S O X0BU X0BU X0BU X0BU X0BU X0BU Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 462.1-0153-008A0-XM ● ● ● ● ● ● 1.53 8.90 11.20 38.00 3.00 130.00 37.64 0.36 5.82 h6 JS7 462.1-0154-008A0-XM ● ● ● ● ● ● 1.54 8.89 11.20 38.00 3.00 130.00 37.64 0.36 5.77 h6 JS7 462.1-0155-008A0-XM ● ● ● ● ● ● 1.55 8.88 11.20 38.00 3.00 130.00 37.64 0.36 5.73 h6 JS7 462.1-0156-008A0-XM ● ● ● ● ● ● 1.56 8.86 11.20 38.00 3.00 130.00 37.64 0.36 5.68 h6 JS7 462.1-0157-008A0-XM ● ● ● ● ● ● 1.57 8.85 11.20 38.00 3.00 130.00 37.63 0.37 5.63 h6 JS7 462.1-0158-008A0-XM ● ● ● ● ● ● 1.58 8.83 11.20 38.00 3.00 130.00 37.63 0.37 5.59 h6 JS7 462.1-0159-008A0-XM ● ● ● ● ● ● 1.59 8.81 11.20 38.00 3.00 130.00 37.63 0.37 5.54 h6 JS7 462.1-0160-008A0-XM ● ● ● ● ● ● 1.60 8.80 11.20 38.00 3.00 130.00 37.63 0.37 5.50 h6 JS7 462.1-0161-008A0-XM ● ● ● ● ● ● 1.61 8.78 11.20 38.00 3.00 130.00 37.62 0.38 5.46 h6 JS7 462.1-0162-008A0-XM ● ● ● ● ● ● 1.62 8.77 11.20 38.00 3.00 130.00 37.62 0.38 5.41 h6 JS7 462.1-0163-008A0-XM ● ● ● ● ● ● 1.63 8.76 11.20 38.00 3.00 130.00 37.62 0.38 5.37 h6 JS7 462.1-0164-008A0-XM ● ● ● ● ● ● 1.64 8.74 11.20 38.00 3.00 130.00 37.62 0.38 5.33 h6 JS7 462.1-0165-008A0-XM ● ● ● ● ● ● 1.65 8.73 11.20 38.00 3.00 130.00 37.62 0.38 5.29 h6 JS7 462.1-0166-008A0-XM ● ● ● ● ● ● 1.66 8.71 11.20 38.00 3.00 130.00 37.61 0.39 5.25 h6 JS7 462.1-0167-008A0-XM ● ● ● ● ● ● 1.67 8.69 11.20 38.00 3.00 130.00 37.61 0.39 5.21 h6 JS7 462.1-0168-008A0-XM ● ● ● ● ● ● 1.68 8.68 11.20 38.00 3.00 130.00 37.61 0.39 5.17 h6 JS7 462.1-0169-008A0-XM ● ● ● ● ● ● 1.69 8.66 11.20 38.00 3.00 130.00 37.61 0.39 5.13 h6 JS7 462.1-0170-008A0-XM ● ● ● ● ● ● 1.70 8.65 11.20 38.00 3.00 130.00 37.60 0.40 5.09 h6 JS7 462.1-0171-008A0-XM ● ● ● ● ● ● 1.71 8.64 11.20 38.00 3.00 130.00 37.60 0.40 5.05 h6 JS7 462.1-0172-008A0-XM ● ● ● ● ● ● 1.72 8.62 11.20 38.00 3.00 130.00 37.60 0.40 5.01 h6 JS7 462.1-0173-008A0-XM ● ● ● ● ● ● 1.73 8.60 11.20 38.00 3.00 130.00 37.60 0.40 4.97 h6 JS7 462.1-0174-008A0-XM ● ● ● ● ● ● 1.74 8.59 11.20 38.00 3.00 130.00 37.59 0.41 4.94 h6 JS7 462.1-0175-008A0-XM ● ● ● ● ● ● 1.75 8.57 11.20 38.00 3.00 130.00 37.59 0.41 4.90 h6 JS7 462.1-0176-008A0-XM ● ● ● ● ● ● 1.76 8.56 11.20 38.00 3.00 130.00 37.59 0.41 4.86 h6 JS7 462.1-0177-008A0-XM ● ● ● ● ● ● 1.77 8.55 11.20 38.00 3.00 130.00 37.59 0.41 4.83 h6 JS7 462.1-0178-008A0-XM ● ● ● ● ● ● 1.78 8.53 11.20 38.00 3.00 130.00 37.58 0.42 4.79 h6 JS7 462.1-0179-008A0-XM ● ● ● ● ● ● 1.79 8.52 11.20 38.00 3.00 130.00 37.58 0.42 4.76 h6 JS7 462.1-0180-008A0-XM ● ● ● ● ● ● 1.80 8.50 11.20 38.00 3.00 130.00 37.58 0.42 4.72 h6 JS7 462.1-0181-008A0-XM ● ● ● ● ● ● 1.81 8.48 11.20 38.00 3.00 130.00 37.58 0.42 4.69 h6 JS7 462.1-0182-008A0-XM ● ● ● ● ● ● 1.82 8.47 11.20 38.00 3.00 130.00 37.58 0.42 4.65 h6 JS7 ● = First choice ○ = Good choice 321
