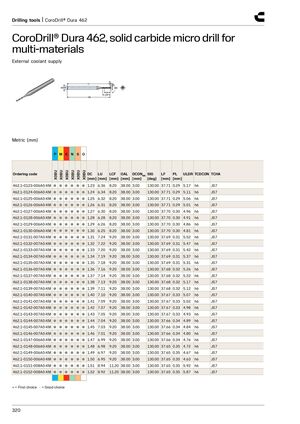

Drilling tools | CoroDrill® Dura 462 CoroDrill® Dura 462, solid carbide micro drill for multi-materials​​ External coolant supply Metric (mm) P M K N S O X0BU X0BU X0BU X0BU X0BU X0BU Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 462.1-0123-006A0-XM ● ● ● ● ● ● 1.23 6.36 8.20 38.00 3.00 130.00 37.71 0.29 5.17 h6 JS7 462.1-0124-006A0-XM ● ● ● ● ● ● 1.24 6.34 8.20 38.00 3.00 130.00 37.71 0.29 5.11 h6 JS7 462.1-0125-006A0-XM ● ● ● ● ● ● 1.25 6.32 8.20 38.00 3.00 130.00 37.71 0.29 5.06 h6 JS7 462.1-0126-006A0-XM ● ● ● ● ● ● 1.26 6.31 8.20 38.00 3.00 130.00 37.71 0.29 5.01 h6 JS7 462.1-0127-006A0-XM ● ● ● ● ● ● 1.27 6.30 8.20 38.00 3.00 130.00 37.70 0.30 4.96 h6 JS7 462.1-0128-006A0-XM ● ● ● ● ● ● 1.28 6.28 8.20 38.00 3.00 130.00 37.70 0.30 4.91 h6 JS7 462.1-0129-006A0-XM ● ● ● ● ● ● 1.29 6.26 8.20 38.00 3.00 130.00 37.70 0.30 4.86 h6 JS7 462.1-0130-006A0-XM ● ● ● ● ● ● 1.30 6.25 8.20 38.00 3.00 130.00 37.70 0.30 4.81 h6 JS7 462.1-0131-007A0-XM ● ● ● ● ● ● 1.31 7.24 9.20 38.00 3.00 130.00 37.69 0.31 5.52 h6 JS7 462.1-0132-007A0-XM ● ● ● ● ● ● 1.32 7.22 9.20 38.00 3.00 130.00 37.69 0.31 5.47 h6 JS7 462.1-0133-007A0-XM ● ● ● ● ● ● 1.33 7.20 9.20 38.00 3.00 130.00 37.69 0.31 5.42 h6 JS7 462.1-0134-007A0-XM ● ● ● ● ● ● 1.34 7.19 9.20 38.00 3.00 130.00 37.69 0.31 5.37 h6 JS7 462.1-0135-007A0-XM ● ● ● ● ● ● 1.35 7.18 9.20 38.00 3.00 130.00 37.69 0.31 5.31 h6 JS7 462.1-0136-007A0-XM ● ● ● ● ● ● 1.36 7.16 9.20 38.00 3.00 130.00 37.68 0.32 5.26 h6 JS7 462.1-0137-007A0-XM ● ● ● ● ● ● 1.37 7.14 9.20 38.00 3.00 130.00 37.68 0.32 5.22 h6 JS7 462.1-0138-007A0-XM ● ● ● ● ● ● 1.38 7.13 9.20 38.00 3.00 130.00 37.68 0.32 5.17 h6 JS7 462.1-0139-007A0-XM ● ● ● ● ● ● 1.39 7.11 9.20 38.00 3.00 130.00 37.68 0.32 5.12 h6 JS7 462.1-0140-007A0-XM ● ● ● ● ● ● 1.40 7.10 9.20 38.00 3.00 130.00 37.67 0.33 5.07 h6 JS7 462.1-0141-007A0-XM ● ● ● ● ● ● 1.41 7.09 9.20 38.00 3.00 130.00 37.67 0.33 5.02 h6 JS7 462.1-0142-007A0-XM ● ● ● ● ● ● 1.42 7.07 9.20 38.00 3.00 130.00 37.67 0.33 4.98 h6 JS7 462.1-0143-007A0-XM ● ● ● ● ● ● 1.43 7.05 9.20 38.00 3.00 130.00 37.67 0.33 4.93 h6 JS7 462.1-0144-007A0-XM ● ● ● ● ● ● 1.44 7.04 9.20 38.00 3.00 130.00 37.66 0.34 4.89 h6 JS7 462.1-0145-007A0-XM ● ● ● ● ● ● 1.45 7.03 9.20 38.00 3.00 130.00 37.66 0.34 4.84 h6 JS7 462.1-0146-007A0-XM ● ● ● ● ● ● 1.46 7.01 9.20 38.00 3.00 130.00 37.66 0.34 4.80 h6 JS7 462.1-0147-006A0-XM ● ● ● ● ● ● 1.47 6.99 9.20 38.00 3.00 130.00 37.66 0.34 4.76 h6 JS7 462.1-0148-006A0-XM ● ● ● ● ● ● 1.48 6.98 9.20 38.00 3.00 130.00 37.65 0.35 4.72 h6 JS7 462.1-0149-006A0-XM ● ● ● ● ● ● 1.49 6.97 9.20 38.00 3.00 130.00 37.65 0.35 4.67 h6 JS7 462.1-0150-006A0-XM ● ● ● ● ● ● 1.50 6.95 9.20 38.00 3.00 130.00 37.65 0.35 4.63 h6 JS7 462.1-0151-008A0-XM ● ● ● ● ● ● 1.51 8.94 11.20 38.00 3.00 130.00 37.65 0.35 5.92 h6 JS7 462.1-0152-008A0-XM ● ● ● ● ● ● 1.52 8.92 11.20 38.00 3.00 130.00 37.65 0.35 5.87 h6 JS7 ● = First choice ○ = Good choice 320
