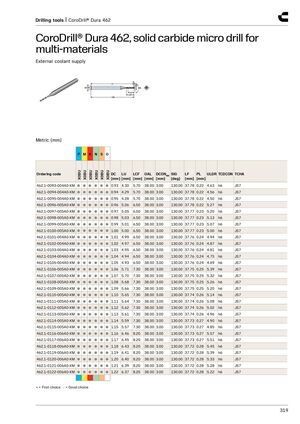

Drilling tools | CoroDrill® Dura 462 CoroDrill® Dura 462, solid carbide micro drill for multi-materials​​ External coolant supply Metric (mm) P M K N S O X0BU X0BU X0BU X0BU X0BU X0BU Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 462.1-0093-004A0-XM ● ● ● ● ● ● 0.93 4.30 5.70 38.00 3.00 130.00 37.78 0.22 4.63 h6 JS7 462.1-0094-004A0-XM ● ● ● ● ● ● 0.94 4.29 5.70 38.00 3.00 130.00 37.78 0.22 4.56 h6 JS7 462.1-0095-004A0-XM ● ● ● ● ● ● 0.95 4.28 5.70 38.00 3.00 130.00 37.78 0.22 4.50 h6 JS7 462.1-0096-005A0-XM ● ● ● ● ● ● 0.96 5.06 6.50 38.00 3.00 130.00 37.78 0.22 5.27 h6 JS7 462.1-0097-005A0-XM ● ● ● ● ● ● 0.97 5.05 6.50 38.00 3.00 130.00 37.77 0.23 5.20 h6 JS7 462.1-0098-005A0-XM ● ● ● ● ● ● 0.98 5.03 6.50 38.00 3.00 130.00 37.77 0.23 5.13 h6 JS7 462.1-0099-005A0-XM ● ● ● ● ● ● 0.99 5.01 6.50 38.00 3.00 130.00 37.77 0.23 5.07 h6 JS7 462.1-0100-005A0-XM ● ● ● ● ● ● 1.00 5.00 6.50 38.00 3.00 130.00 37.77 0.23 5.00 h6 JS7 462.1-0101-004A0-XM ● ● ● ● ● ● 1.01 4.99 6.50 38.00 3.00 130.00 37.76 0.24 4.94 h6 JS7 462.1-0102-004A0-XM ● ● ● ● ● ● 1.02 4.97 6.50 38.00 3.00 130.00 37.76 0.24 4.87 h6 JS7 462.1-0103-004A0-XM ● ● ● ● ● ● 1.03 4.95 6.50 38.00 3.00 130.00 37.76 0.24 4.81 h6 JS7 462.1-0104-004A0-XM ● ● ● ● ● ● 1.04 4.94 6.50 38.00 3.00 130.00 37.76 0.24 4.75 h6 JS7 462.1-0105-004A0-XM ● ● ● ● ● ● 1.05 4.93 6.50 38.00 3.00 130.00 37.76 0.24 4.69 h6 JS7 462.1-0106-005A0-XM ● ● ● ● ● ● 1.06 5.71 7.30 38.00 3.00 130.00 37.75 0.25 5.39 h6 JS7 462.1-0107-005A0-XM ● ● ● ● ● ● 1.07 5.70 7.30 38.00 3.00 130.00 37.75 0.25 5.32 h6 JS7 462.1-0108-005A0-XM ● ● ● ● ● ● 1.08 5.68 7.30 38.00 3.00 130.00 37.75 0.25 5.26 h6 JS7 462.1-0109-005A0-XM ● ● ● ● ● ● 1.09 5.66 7.30 38.00 3.00 130.00 37.75 0.25 5.20 h6 JS7 462.1-0110-005A0-XM ● ● ● ● ● ● 1.10 5.65 7.30 38.00 3.00 130.00 37.74 0.26 5.14 h6 JS7 462.1-0111-005A0-XM ● ● ● ● ● ● 1.11 5.64 7.30 38.00 3.00 130.00 37.74 0.26 5.08 h6 JS7 462.1-0112-005A0-XM ● ● ● ● ● ● 1.12 5.62 7.30 38.00 3.00 130.00 37.74 0.26 5.02 h6 JS7 462.1-0113-005A0-XM ● ● ● ● ● ● 1.13 5.61 7.30 38.00 3.00 130.00 37.74 0.26 4.96 h6 JS7 462.1-0114-005A0-XM ● ● ● ● ● ● 1.14 5.59 7.30 38.00 3.00 130.00 37.73 0.27 4.90 h6 JS7 462.1-0115-005A0-XM ● ● ● ● ● ● 1.15 5.57 7.30 38.00 3.00 130.00 37.73 0.27 4.85 h6 JS7 462.1-0116-006A0-XM ● ● ● ● ● ● 1.16 6.46 8.20 38.00 3.00 130.00 37.73 0.27 5.57 h6 JS7 462.1-0117-006A0-XM ● ● ● ● ● ● 1.17 6.45 8.20 38.00 3.00 130.00 37.73 0.27 5.51 h6 JS7 462.1-0118-006A0-XM ● ● ● ● ● ● 1.18 6.43 8.20 38.00 3.00 130.00 37.72 0.28 5.45 h6 JS7 462.1-0119-006A0-XM ● ● ● ● ● ● 1.19 6.41 8.20 38.00 3.00 130.00 37.72 0.28 5.39 h6 JS7 462.1-0120-006A0-XM ● ● ● ● ● ● 1.20 6.40 8.20 38.00 3.00 130.00 37.72 0.28 5.33 h6 JS7 462.1-0121-006A0-XM ● ● ● ● ● ● 1.21 6.39 8.20 38.00 3.00 130.00 37.72 0.28 5.28 h6 JS7 462.1-0122-006A0-XM ● ● ● ● ● ● 1.22 6.37 8.20 38.00 3.00 130.00 37.72 0.28 5.22 h6 JS7 ● = First choice ○ = Good choice 319
