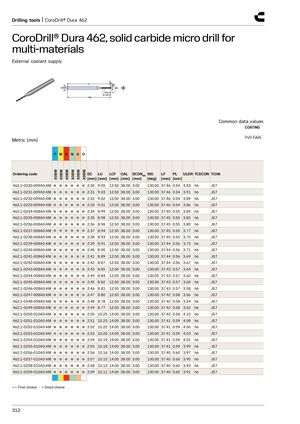

Drilling tools | CoroDrill® Dura 462 CoroDrill® Dura 462, solid carbide micro drill for multi-materials External coolant supply Common data values COATING PVD TiAlN Metric (mm) P M K N S O X0BM X0BM X0BM X0BM X0BM X0BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 462.1-0230-009A0-XM ● ● ● ● ● ● 2.30 9.05 12.50 38.00 3.00 130.00 37.46 0.54 3.93 h6 JS7 462.1-0231-009A0-XM ● ● ● ● ● ● 2.31 9.03 12.50 38.00 3.00 130.00 37.46 0.54 3.91 h6 JS7 462.1-0232-009A0-XM ● ● ● ● ● ● 2.32 9.02 12.50 38.00 3.00 130.00 37.46 0.54 3.89 h6 JS7 462.1-0233-009A0-XM ● ● ● ● ● ● 2.33 9.01 12.50 38.00 3.00 130.00 37.46 0.54 3.86 h6 JS7 462.1-0234-008A0-XM ● ● ● ● ● ● 2.34 8.99 12.50 38.00 3.00 130.00 37.45 0.55 3.84 h6 JS7 462.1-0235-008A0-XM ● ● ● ● ● ● 2.35 8.98 12.50 38.00 3.00 130.00 37.45 0.55 3.82 h6 JS7 462.1-0236-008A0-XM ● ● ● ● ● ● 2.36 8.96 12.50 38.00 3.00 130.00 37.45 0.55 3.80 h6 JS7 462.1-0237-008A0-XM ● ● ● ● ● ● 2.37 8.94 12.50 38.00 3.00 130.00 37.45 0.55 3.77 h6 JS7 462.1-0238-008A0-XM ● ● ● ● ● ● 2.38 8.93 12.50 38.00 3.00 130.00 37.45 0.55 3.75 h6 JS7 462.1-0239-008A0-XM ● ● ● ● ● ● 2.39 8.91 12.50 38.00 3.00 130.00 37.44 0.56 3.73 h6 JS7 462.1-0240-008A0-XM ● ● ● ● ● ● 2.40 8.90 12.50 38.00 3.00 130.00 37.44 0.56 3.71 h6 JS7 462.1-0241-008A0-XM ● ● ● ● ● ● 2.41 8.89 12.50 38.00 3.00 130.00 37.44 0.56 3.69 h6 JS7 462.1-0242-008A0-XM ● ● ● ● ● ● 2.42 8.87 12.50 38.00 3.00 130.00 37.44 0.56 3.67 h6 JS7 462.1-0243-008A0-XM ● ● ● ● ● ● 2.43 8.85 12.50 38.00 3.00 130.00 37.43 0.57 3.64 h6 JS7 462.1-0244-008A0-XM ● ● ● ● ● ● 2.44 8.84 12.50 38.00 3.00 130.00 37.43 0.57 3.62 h6 JS7 462.1-0245-008A0-XM ● ● ● ● ● ● 2.45 8.82 12.50 38.00 3.00 130.00 37.43 0.57 3.60 h6 JS7 462.1-0246-008A0-XM ● ● ● ● ● ● 2.46 8.81 12.50 38.00 3.00 130.00 37.43 0.57 3.58 h6 JS7 462.1-0247-008A0-XM ● ● ● ● ● ● 2.47 8.80 12.50 38.00 3.00 130.00 37.42 0.58 3.56 h6 JS7 462.1-0248-008A0-XM ● ● ● ● ● ● 2.48 8.78 12.50 38.00 3.00 130.00 37.42 0.58 3.54 h6 JS7 462.1-0249-008A0-XM ● ● ● ● ● ● 2.49 8.77 12.50 38.00 3.00 130.00 37.42 0.58 3.52 h6 JS7 462.1-0250-010A0-XM ● ● ● ● ● ● 2.50 10.25 14.00 38.00 3.00 130.00 37.42 0.58 4.10 h6 JS7 462.1-0251-010A0-XM ● ● ● ● ● ● 2.51 10.23 14.00 38.00 3.00 130.00 37.41 0.59 4.08 h6 JS7 462.1-0252-010A0-XM ● ● ● ● ● ● 2.52 10.22 14.00 38.00 3.00 130.00 37.41 0.59 4.06 h6 JS7 462.1-0253-010A0-XM ● ● ● ● ● ● 2.53 10.20 14.00 38.00 3.00 130.00 37.41 0.59 4.03 h6 JS7 462.1-0254-010A0-XM ● ● ● ● ● ● 2.54 10.19 14.00 38.00 3.00 130.00 37.41 0.59 4.01 h6 JS7 462.1-0255-010A0-XM ● ● ● ● ● ● 2.55 10.18 14.00 38.00 3.00 130.00 37.41 0.59 3.99 h6 JS7 462.1-0256-010A0-XM ● ● ● ● ● ● 2.56 10.16 14.00 38.00 3.00 130.00 37.40 0.60 3.97 h6 JS7 462.1-0257-010A0-XM ● ● ● ● ● ● 2.57 10.15 14.00 38.00 3.00 130.00 37.40 0.60 3.95 h6 JS7 462.1-0258-010A0-XM ● ● ● ● ● ● 2.58 10.13 14.00 38.00 3.00 130.00 37.40 0.60 3.93 h6 JS7 462.1-0259-010A0-XM ● ● ● ● ● ● 2.59 10.11 14.00 38.00 3.00 130.00 37.40 0.60 3.91 h6 JS7 ● = First choice ○ = Good choice 312
