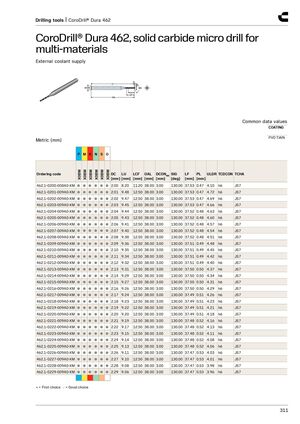

Drilling tools | CoroDrill® Dura 462 CoroDrill® Dura 462, solid carbide micro drill for multi-materials​​ External coolant supply Common data values COATING PVD TiAlN Metric (mm) P M K N S O X0BM X0BM X0BM X0BM X0BM X0BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 462.1-0200-008A0-XM ● ● ● ● ● ● 2.00 8.20 11.20 38.00 3.00 130.00 37.53 0.47 4.10 h6 JS7 462.1-0201-009A0-XM ● ● ● ● ● ● 2.01 9.48 12.50 38.00 3.00 130.00 37.53 0.47 4.72 h6 JS7 462.1-0202-009A0-XM ● ● ● ● ● ● 2.02 9.47 12.50 38.00 3.00 130.00 37.53 0.47 4.69 h6 JS7 462.1-0203-009A0-XM ● ● ● ● ● ● 2.03 9.45 12.50 38.00 3.00 130.00 37.53 0.47 4.66 h6 JS7 462.1-0204-009A0-XM ● ● ● ● ● ● 2.04 9.44 12.50 38.00 3.00 130.00 37.52 0.48 4.63 h6 JS7 462.1-0205-009A0-XM ● ● ● ● ● ● 2.05 9.43 12.50 38.00 3.00 130.00 37.52 0.48 4.60 h6 JS7 462.1-0206-009A0-XM ● ● ● ● ● ● 2.06 9.41 12.50 38.00 3.00 130.00 37.52 0.48 4.57 h6 JS7 462.1-0207-009A0-XM ● ● ● ● ● ● 2.07 9.40 12.50 38.00 3.00 130.00 37.52 0.48 4.54 h6 JS7 462.1-0208-009A0-XM ● ● ● ● ● ● 2.08 9.38 12.50 38.00 3.00 130.00 37.52 0.48 4.51 h6 JS7 462.1-0209-009A0-XM ● ● ● ● ● ● 2.09 9.36 12.50 38.00 3.00 130.00 37.51 0.49 4.48 h6 JS7 462.1-0210-009A0-XM ● ● ● ● ● ● 2.10 9.35 12.50 38.00 3.00 130.00 37.51 0.49 4.45 h6 JS7 462.1-0211-009A0-XM ● ● ● ● ● ● 2.11 9.34 12.50 38.00 3.00 130.00 37.51 0.49 4.42 h6 JS7 462.1-0212-009A0-XM ● ● ● ● ● ● 2.12 9.32 12.50 38.00 3.00 130.00 37.51 0.49 4.40 h6 JS7 462.1-0213-009A0-XM ● ● ● ● ● ● 2.13 9.31 12.50 38.00 3.00 130.00 37.50 0.50 4.37 h6 JS7 462.1-0214-009A0-XM ● ● ● ● ● ● 2.14 9.29 12.50 38.00 3.00 130.00 37.50 0.50 4.34 h6 JS7 462.1-0215-009A0-XM ● ● ● ● ● ● 2.15 9.27 12.50 38.00 3.00 130.00 37.50 0.50 4.31 h6 JS7 462.1-0216-009A0-XM ● ● ● ● ● ● 2.16 9.26 12.50 38.00 3.00 130.00 37.50 0.50 4.29 h6 JS7 462.1-0217-009A0-XM ● ● ● ● ● ● 2.17 9.24 12.50 38.00 3.00 130.00 37.49 0.51 4.26 h6 JS7 462.1-0218-009A0-XM ● ● ● ● ● ● 2.18 9.23 12.50 38.00 3.00 130.00 37.49 0.51 4.23 h6 JS7 462.1-0219-009A0-XM ● ● ● ● ● ● 2.19 9.22 12.50 38.00 3.00 130.00 37.49 0.51 4.21 h6 JS7 462.1-0220-009A0-XM ● ● ● ● ● ● 2.20 9.20 12.50 38.00 3.00 130.00 37.49 0.51 4.18 h6 JS7 462.1-0221-009A0-XM ● ● ● ● ● ● 2.21 9.19 12.50 38.00 3.00 130.00 37.48 0.52 4.16 h6 JS7 462.1-0222-009A0-XM ● ● ● ● ● ● 2.22 9.17 12.50 38.00 3.00 130.00 37.48 0.52 4.13 h6 JS7 462.1-0223-009A0-XM ● ● ● ● ● ● 2.23 9.15 12.50 38.00 3.00 130.00 37.48 0.52 4.11 h6 JS7 462.1-0224-009A0-XM ● ● ● ● ● ● 2.24 9.14 12.50 38.00 3.00 130.00 37.48 0.52 4.08 h6 JS7 462.1-0225-009A0-XM ● ● ● ● ● ● 2.25 9.13 12.50 38.00 3.00 130.00 37.48 0.52 4.06 h6 JS7 462.1-0226-009A0-XM ● ● ● ● ● ● 2.26 9.11 12.50 38.00 3.00 130.00 37.47 0.53 4.03 h6 JS7 462.1-0227-009A0-XM ● ● ● ● ● ● 2.27 9.10 12.50 38.00 3.00 130.00 37.47 0.53 4.01 h6 JS7 462.1-0228-009A0-XM ● ● ● ● ● ● 2.28 9.08 12.50 38.00 3.00 130.00 37.47 0.53 3.98 h6 JS7 462.1-0229-009A0-XM ● ● ● ● ● ● 2.29 9.06 12.50 38.00 3.00 130.00 37.47 0.53 3.96 h6 JS7 ● = First choice ○ = Good choice 311
