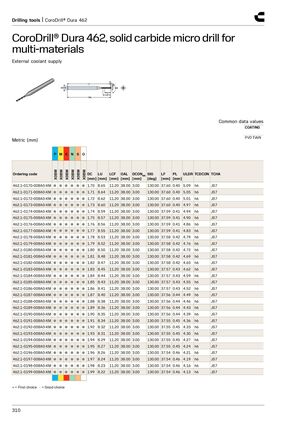

Drilling tools | CoroDrill® Dura 462 CoroDrill® Dura 462, solid carbide micro drill for multi-materials External coolant supply Common data values COATING PVD TiAlN Metric (mm) P M K N S O X0BM X0BM X0BM X0BM X0BM X0BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 462.1-0170-008A0-XM ● ● ● ● ● ● 1.70 8.65 11.20 38.00 3.00 130.00 37.60 0.40 5.09 h6 JS7 462.1-0171-008A0-XM ● ● ● ● ● ● 1.71 8.64 11.20 38.00 3.00 130.00 37.60 0.40 5.05 h6 JS7 462.1-0172-008A0-XM ● ● ● ● ● ● 1.72 8.62 11.20 38.00 3.00 130.00 37.60 0.40 5.01 h6 JS7 462.1-0173-008A0-XM ● ● ● ● ● ● 1.73 8.60 11.20 38.00 3.00 130.00 37.60 0.40 4.97 h6 JS7 462.1-0174-008A0-XM ● ● ● ● ● ● 1.74 8.59 11.20 38.00 3.00 130.00 37.59 0.41 4.94 h6 JS7 462.1-0175-008A0-XM ● ● ● ● ● ● 1.75 8.57 11.20 38.00 3.00 130.00 37.59 0.41 4.90 h6 JS7 462.1-0176-008A0-XM ● ● ● ● ● ● 1.76 8.56 11.20 38.00 3.00 130.00 37.59 0.41 4.86 h6 JS7 462.1-0177-008A0-XM ● ● ● ● ● ● 1.77 8.55 11.20 38.00 3.00 130.00 37.59 0.41 4.83 h6 JS7 462.1-0178-008A0-XM ● ● ● ● ● ● 1.78 8.53 11.20 38.00 3.00 130.00 37.58 0.42 4.79 h6 JS7 462.1-0179-008A0-XM ● ● ● ● ● ● 1.79 8.52 11.20 38.00 3.00 130.00 37.58 0.42 4.76 h6 JS7 462.1-0180-008A0-XM ● ● ● ● ● ● 1.80 8.50 11.20 38.00 3.00 130.00 37.58 0.42 4.72 h6 JS7 462.1-0181-008A0-XM ● ● ● ● ● ● 1.81 8.48 11.20 38.00 3.00 130.00 37.58 0.42 4.69 h6 JS7 462.1-0182-008A0-XM ● ● ● ● ● ● 1.82 8.47 11.20 38.00 3.00 130.00 37.58 0.42 4.65 h6 JS7 462.1-0183-008A0-XM ● ● ● ● ● ● 1.83 8.45 11.20 38.00 3.00 130.00 37.57 0.43 4.62 h6 JS7 462.1-0184-008A0-XM ● ● ● ● ● ● 1.84 8.44 11.20 38.00 3.00 130.00 37.57 0.43 4.59 h6 JS7 462.1-0185-008A0-XM ● ● ● ● ● ● 1.85 8.43 11.20 38.00 3.00 130.00 37.57 0.43 4.55 h6 JS7 462.1-0186-008A0-XM ● ● ● ● ● ● 1.86 8.41 11.20 38.00 3.00 130.00 37.57 0.43 4.52 h6 JS7 462.1-0187-008A0-XM ● ● ● ● ● ● 1.87 8.40 11.20 38.00 3.00 130.00 37.56 0.44 4.49 h6 JS7 462.1-0188-008A0-XM ● ● ● ● ● ● 1.88 8.38 11.20 38.00 3.00 130.00 37.56 0.44 4.46 h6 JS7 462.1-0189-008A0-XM ● ● ● ● ● ● 1.89 8.36 11.20 38.00 3.00 130.00 37.56 0.44 4.43 h6 JS7 462.1-0190-008A0-XM ● ● ● ● ● ● 1.90 8.35 11.20 38.00 3.00 130.00 37.56 0.44 4.39 h6 JS7 462.1-0191-008A0-XM ● ● ● ● ● ● 1.91 8.34 11.20 38.00 3.00 130.00 37.55 0.45 4.36 h6 JS7 462.1-0192-008A0-XM ● ● ● ● ● ● 1.92 8.32 11.20 38.00 3.00 130.00 37.55 0.45 4.33 h6 JS7 462.1-0193-008A0-XM ● ● ● ● ● ● 1.93 8.31 11.20 38.00 3.00 130.00 37.55 0.45 4.30 h6 JS7 462.1-0194-008A0-XM ● ● ● ● ● ● 1.94 8.29 11.20 38.00 3.00 130.00 37.55 0.45 4.27 h6 JS7 462.1-0195-008A0-XM ● ● ● ● ● ● 1.95 8.27 11.20 38.00 3.00 130.00 37.55 0.45 4.24 h6 JS7 462.1-0196-008A0-XM ● ● ● ● ● ● 1.96 8.26 11.20 38.00 3.00 130.00 37.54 0.46 4.21 h6 JS7 462.1-0197-008A0-XM ● ● ● ● ● ● 1.97 8.24 11.20 38.00 3.00 130.00 37.54 0.46 4.19 h6 JS7 462.1-0198-008A0-XM ● ● ● ● ● ● 1.98 8.23 11.20 38.00 3.00 130.00 37.54 0.46 4.16 h6 JS7 462.1-0199-008A0-XM ● ● ● ● ● ● 1.99 8.22 11.20 38.00 3.00 130.00 37.54 0.46 4.13 h6 JS7 ● = First choice ○ = Good choice 310
