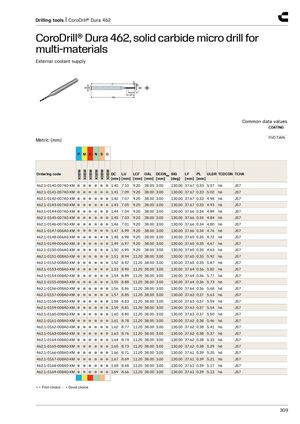

Drilling tools | CoroDrill® Dura 462 CoroDrill® Dura 462, solid carbide micro drill for multi-materials External coolant supply Common data values COATING PVD TiAlN Metric (mm) P M K N S O X0BM X0BM X0BM X0BM X0BM X0BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 462.1-0140-007A0-XM ● ● ● ● ● ● 1.40 7.10 9.20 38.00 3.00 130.00 37.67 0.33 5.07 h6 JS7 462.1-0141-007A0-XM ● ● ● ● ● ● 1.41 7.09 9.20 38.00 3.00 130.00 37.67 0.33 5.02 h6 JS7 462.1-0142-007A0-XM ● ● ● ● ● ● 1.42 7.07 9.20 38.00 3.00 130.00 37.67 0.33 4.98 h6 JS7 462.1-0143-007A0-XM ● ● ● ● ● ● 1.43 7.05 9.20 38.00 3.00 130.00 37.67 0.33 4.93 h6 JS7 462.1-0144-007A0-XM ● ● ● ● ● ● 1.44 7.04 9.20 38.00 3.00 130.00 37.66 0.34 4.89 h6 JS7 462.1-0145-007A0-XM ● ● ● ● ● ● 1.45 7.03 9.20 38.00 3.00 130.00 37.66 0.34 4.84 h6 JS7 462.1-0146-007A0-XM ● ● ● ● ● ● 1.46 7.01 9.20 38.00 3.00 130.00 37.66 0.34 4.80 h6 JS7 462.1-0147-006A0-XM ● ● ● ● ● ● 1.47 6.99 9.20 38.00 3.00 130.00 37.66 0.34 4.76 h6 JS7 462.1-0148-006A0-XM ● ● ● ● ● ● 1.48 6.98 9.20 38.00 3.00 130.00 37.65 0.35 4.72 h6 JS7 462.1-0149-006A0-XM ● ● ● ● ● ● 1.49 6.97 9.20 38.00 3.00 130.00 37.65 0.35 4.67 h6 JS7 462.1-0150-006A0-XM ● ● ● ● ● ● 1.50 6.95 9.20 38.00 3.00 130.00 37.65 0.35 4.63 h6 JS7 462.1-0151-008A0-XM ● ● ● ● ● ● 1.51 8.94 11.20 38.00 3.00 130.00 37.65 0.35 5.92 h6 JS7 462.1-0152-008A0-XM ● ● ● ● ● ● 1.52 8.92 11.20 38.00 3.00 130.00 37.65 0.35 5.87 h6 JS7 462.1-0153-008A0-XM ● ● ● ● ● ● 1.53 8.90 11.20 38.00 3.00 130.00 37.64 0.36 5.82 h6 JS7 462.1-0154-008A0-XM ● ● ● ● ● ● 1.54 8.89 11.20 38.00 3.00 130.00 37.64 0.36 5.77 h6 JS7 462.1-0155-008A0-XM ● ● ● ● ● ● 1.55 8.88 11.20 38.00 3.00 130.00 37.64 0.36 5.73 h6 JS7 462.1-0156-008A0-XM ● ● ● ● ● ● 1.56 8.86 11.20 38.00 3.00 130.00 37.64 0.36 5.68 h6 JS7 462.1-0157-008A0-XM ● ● ● ● ● ● 1.57 8.85 11.20 38.00 3.00 130.00 37.63 0.37 5.63 h6 JS7 462.1-0158-008A0-XM ● ● ● ● ● ● 1.58 8.83 11.20 38.00 3.00 130.00 37.63 0.37 5.59 h6 JS7 462.1-0159-008A0-XM ● ● ● ● ● ● 1.59 8.81 11.20 38.00 3.00 130.00 37.63 0.37 5.54 h6 JS7 462.1-0160-008A0-XM ● ● ● ● ● ● 1.60 8.80 11.20 38.00 3.00 130.00 37.63 0.37 5.50 h6 JS7 462.1-0161-008A0-XM ● ● ● ● ● ● 1.61 8.78 11.20 38.00 3.00 130.00 37.62 0.38 5.46 h6 JS7 462.1-0162-008A0-XM ● ● ● ● ● ● 1.62 8.77 11.20 38.00 3.00 130.00 37.62 0.38 5.41 h6 JS7 462.1-0163-008A0-XM ● ● ● ● ● ● 1.63 8.76 11.20 38.00 3.00 130.00 37.62 0.38 5.37 h6 JS7 462.1-0164-008A0-XM ● ● ● ● ● ● 1.64 8.74 11.20 38.00 3.00 130.00 37.62 0.38 5.33 h6 JS7 462.1-0165-008A0-XM ● ● ● ● ● ● 1.65 8.73 11.20 38.00 3.00 130.00 37.62 0.38 5.29 h6 JS7 462.1-0166-008A0-XM ● ● ● ● ● ● 1.66 8.71 11.20 38.00 3.00 130.00 37.61 0.39 5.25 h6 JS7 462.1-0167-008A0-XM ● ● ● ● ● ● 1.67 8.69 11.20 38.00 3.00 130.00 37.61 0.39 5.21 h6 JS7 462.1-0168-008A0-XM ● ● ● ● ● ● 1.68 8.68 11.20 38.00 3.00 130.00 37.61 0.39 5.17 h6 JS7 462.1-0169-008A0-XM ● ● ● ● ● ● 1.69 8.66 11.20 38.00 3.00 130.00 37.61 0.39 5.13 h6 JS7 ● = First choice ○ = Good choice 309
